GE 9E / 9171E Gas Turbine Hot Section Parts: Custom Superalloy Casting Nozzles, Buckets, and Vanes

GE 9E / 9171E Gas Turbine Hot Section Parts: Custom Superalloy Manufacturing for Nozzles, Buckets, and Vanes

GE 9E / 9171E gas turbines are widely used E-class industrial gas turbine platforms for power generation applications. Their hot section components operate under severe thermal, mechanical, oxidation, and fatigue conditions. Parts such as 1st stage nozzles, turbine buckets, guide vanes, shrouds, diaphragms, combustion liners, and transition pieces require reliable superalloy selection, precision casting, post-processing, machining, coating, and inspection control.

NewayAeroTech supports custom manufacturing of high-temperature alloy components for GE 9E-type, 9171E-class, and other E-class gas turbine applications. Our work focuses on manufacturing according to customer drawings, samples, specifications, and inspection requirements. We provide process routes including Vacuum Investment Casting, Equiaxed Crystal Casting, Superalloy Directional Casting, Single Crystal Casting, HIP, heat treatment, CNC machining, EDM, deep hole drilling, TBC coating, and dimensional inspection.

For hot gas path replacement, repair, retrofit, and reverse-engineered component projects, the manufacturing challenge is not only producing the shape. The key is controlling alloy integrity, internal defects, dimensional accuracy, coating reliability, cooling features, and final documentation. This article explains how GE 9E / 9171E hot section parts can be manufactured from superalloys and what engineering factors buyers should confirm before quotation.

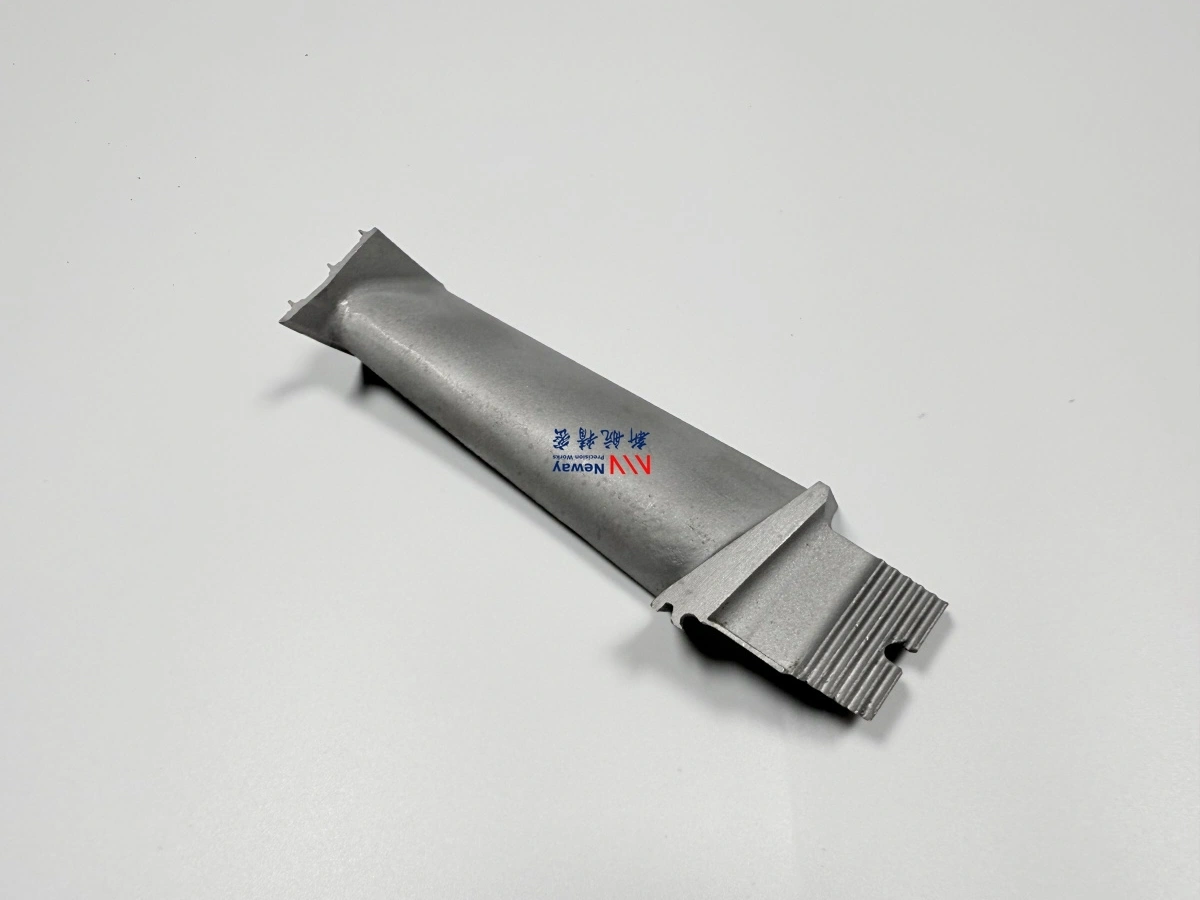

GE 9E / 9171E Hot Section Parts and Manufacturing Requirements

The hot section of a GE 9E / 9171E gas turbine includes components exposed to high-temperature combustion gas. These parts must resist creep, oxidation, thermal fatigue, corrosion, vibration, erosion, and repeated start-stop cycling. Compared with general industrial castings, gas turbine hot section components require tighter control of alloy chemistry, grain structure, wall thickness, cooling features, machining datum, coating quality, and inspection records.

Typical GE 9E-type hot section parts include 1st stage nozzles, 1st stage buckets, 2nd stage nozzles, 2nd stage buckets, 3rd stage nozzles, 3rd stage buckets, turbine guide vanes, shroud segments, combustion liners, transition pieces, heat shields, sealing parts, and wear-resistant contact components. Different stages face different temperature and stress conditions, so the process route must be selected according to part geometry and service environment.

Superalloy Selection for GE 9E-Type Hot Gas Path Components

Material selection directly affects the service life of nozzles, buckets, vanes, and other hot gas path components. For GE 9E / 9171E-type parts, nickel-based superalloys are commonly used because they maintain strength at elevated temperature and provide good oxidation and creep resistance. Depending on the component, cobalt-based alloys, Rene alloys, CMSX single crystal alloys, Hastelloy, and Nimonic alloys may also be considered.

NewayAeroTech supports multiple high-temperature alloy material routes for custom gas turbine components, including Inconel, Rene, CMSX, Nimonic, Stellite, and Hastelloy alloy families. The final selection should consider operating temperature, stress level, corrosion environment, coating requirements, repairability, casting feasibility, and inspection standards.

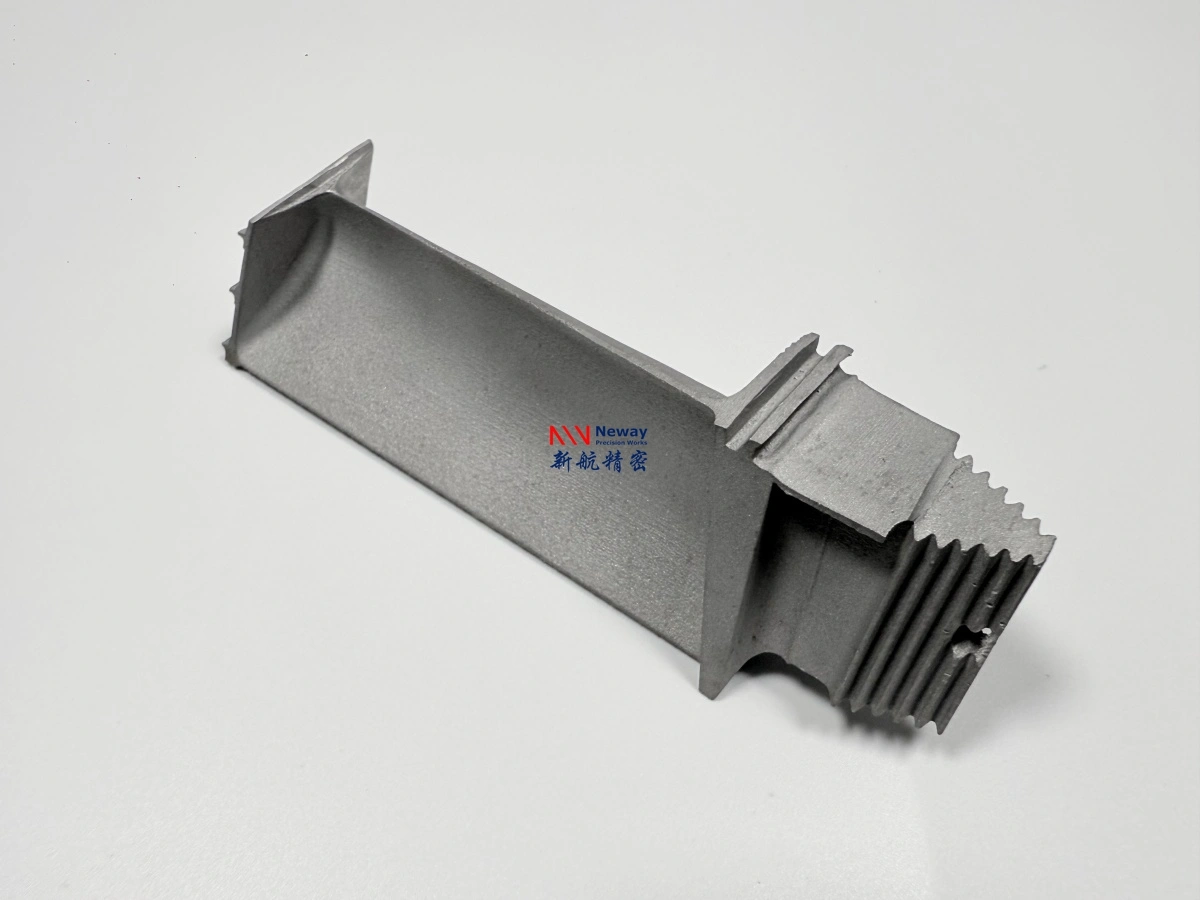

Manufacturing Routes for Nozzles, Buckets, and Vanes

The correct manufacturing route depends on the component type. A turbine nozzle normally requires accurate airfoil geometry, casting quality, coating control, and stable assembly features. A turbine bucket or blade may require higher creep resistance, root machining, cooling hole control, and fatigue performance. A guide vane must balance castability, gas path geometry, thermal stability, and inspection requirements.

For GE 9E / 9171E hot section components, Vacuum Investment Casting is often used to create complex superalloy shapes with thin walls, airfoil profiles, and integrated platforms. When grain structure is critical, Equiaxed Crystal Casting, Superalloy Directional Casting, or Single Crystal Casting can be selected according to service temperature and stress direction.

Precision CNC Machining for GE 9E Hot Section Components

Casting produces the near-net shape of nozzles, buckets, vanes, and shrouds, but final assembly often depends on precision machined features. Root profiles, platform surfaces, sealing faces, bolt interfaces, mating surfaces, and datum areas usually require CNC machining after casting and heat treatment. For superalloy parts, machining must account for high strength, low thermal conductivity, work hardening, tool wear, and dimensional stability.

NewayAeroTech provides Superalloy CNC Machining for cast and forged high-temperature alloy components. For gas turbine hot section parts, machining strategy should be defined early so that casting allowances, datum systems, fixture design, inspection references, and final tolerances are aligned.

EDM and Deep Hole Drilling for Cooling Features

Cooling holes are critical for turbine buckets, blades, nozzles, and vanes. In high-temperature gas turbine parts, cooling features help control metal temperature and protect the airfoil from thermal damage. However, small cooling holes, angled holes, turbulated holes, internal channels, narrow slots, and film-cooling features are difficult to machine in nickel-based superalloys by conventional cutting alone.

NewayAeroTech supports Electrical Discharge Machining (EDM) and Superalloy Deep Hole Drilling for complex high-temperature alloy features. EDM is useful for small holes, slots, cavities, difficult profiles, and hard alloys, while deep hole drilling can be used for long internal passages and bore features when geometry permits.

HIP, Heat Treatment, and Coating for Hot Section Part Reliability

After casting, many GE 9E / 9171E-type hot section components require post-processing before final machining and inspection. Hot Isostatic Pressing (HIP) can help reduce internal porosity and improve material density. Heat Treatment is used to stabilize microstructure, improve mechanical properties, and prepare the alloy for service conditions.

For high-temperature gas path surfaces, protective coatings are often needed. Thermal Barrier Coating (TBC) can reduce metal temperature exposure and improve hot-section durability when properly applied with a compatible bond coat. MCrAlY bond coats, Al-Si protective coatings, oxidation-resistant coatings, and wear-resistant hardface materials may be selected according to the component location and specification.

Single Crystal, Directional, and Equiaxed Casting for Turbine Components

Not every hot section component requires the same casting structure. Equiaxed casting can be suitable for many vanes, nozzles, shrouds, and structural hot-section parts where isotropic properties and cost control are important. Directional casting is used when the component benefits from grain alignment along the principal stress direction. Single crystal casting is used for the most demanding turbine blades and buckets where creep resistance is critical.

For GE 9E / 9171E-type turbine blade or bucket projects, the choice between equiaxed, directional, and single crystal casting should be based on the part stage, operating temperature, stress direction, expected service life, alloy type, and inspection requirements. A first-stage blade or bucket may justify more advanced casting control, while a lower-temperature shroud or static vane may use a different route.

Quality Control for Custom GE 9E / 9171E Hot Section Parts

Quality control is a key part of gas turbine hot section manufacturing. A replacement nozzle, bucket, or vane must meet dimensional, metallurgical, surface, coating, and documentation requirements. For critical superalloy parts, inspection should be planned before production begins, not added only at the end.

NewayAeroTech provides Material Testing and Analysis support for high-temperature alloy components. Depending on the project requirements, inspection can include CMM measurement, 3D scanning, X-ray inspection, CT inspection, dye penetrant inspection, metallographic analysis, SEM/EDS, chemical composition verification, tensile testing, coating thickness inspection, and final visual inspection.

Reverse Engineering and Replacement Manufacturing Support

Many GE 9E / 9171E hot section projects start from existing parts, worn samples, incomplete drawings, or legacy component requirements. In such cases, reverse engineering may be needed before manufacturing. A scanned model alone is usually not enough. The engineering team must understand which surfaces are functional, which areas are worn, where machining allowance is required, and what material, heat treatment, coating, and inspection standard should apply.

For custom replacement manufacturing, the best workflow is to combine sample analysis, 3D scanning, material verification, drawing reconstruction, manufacturability review, and process planning. If the component has cooling holes, coated surfaces, shrouds, Z-notch hardface areas, or high-precision root features, these details should be confirmed before production. This helps reduce risks in casting tooling, machining fixtures, inspection datum alignment, and final assembly fit.

Typical Applications in Power Generation and Aerospace Turbomachinery

GE 9E / 9171E-type hot section parts are closely related to industrial power generation. Similar manufacturing logic also applies to other E-class gas turbines, turbocharger hot-section parts, aeroengine test components, turbine nozzles, guide vanes, heat shields, combustion parts, and high-temperature flow path components.

Power Generation Gas Turbine Parts

For Power Generation applications, hot section components must support long operating hours, thermal cycling, oxidation resistance, and reliable outage planning. Custom-manufactured nozzles, buckets, vanes, shrouds, and transition parts may require casting, HIP, heat treatment, CNC machining, EDM cooling features, and coating documentation.

Aerospace and Aviation Hot Section Components

In Aerospace and Aviation, similar superalloy manufacturing capabilities are used for turbine blades, vanes, nozzle rings, combustion components, hot shields, and high-temperature engine parts. Compared with industrial gas turbine parts, aerospace components may require more stringent material traceability, dimensional reports, and process documentation.

Energy and High-Temperature Industrial Systems

For Energy systems, superalloy components are used in turbines, burners, heat recovery systems, high-temperature fixtures, and corrosion-resistant equipment. The same manufacturing disciplines—material selection, casting control, machining, coating, and inspection—help improve component reliability in severe thermal environments.

What Information Is Needed to Quote GE 9E / 9171E Hot Section Parts?

To quote custom GE 9E / 9171E hot section parts accurately, the engineering team needs enough information to evaluate alloy selection, casting route, tooling requirements, machining difficulty, coating needs, inspection level, and delivery risk. Incomplete data may result in inaccurate pricing, process changes, or additional engineering confirmation after quotation.

For faster quotation, please provide the following information:

Turbine model or application, such as GE 9E, 9171E, E-class gas turbine, or equivalent platform

Part name and stage, such as 1st stage nozzle, 2nd stage bucket, 3rd stage vane, shroud, combustion liner, or transition piece

3D CAD model, preferably STEP, X_T, IGS, or other editable format

2D drawing with tolerances, datum requirements, cooling hole notes, coating requirements, and inspection standards

Required material grade, such as Inconel 713C, Inconel 738LC, CMSX-4, Rene N5, Nimonic 90, Stellite 6B, or Hastelloy X

Required manufacturing process, such as vacuum investment casting, equiaxed casting, directional casting, single crystal casting, forging, CNC machining, EDM, or deep hole drilling

Required post-processing, such as HIP, heat treatment, TBC, MCrAlY bond coat, Al-Si coating, hardface welding, or surface finishing

Inspection requirements, such as CMM report, FAI, X-ray, CT, FPI, metallography, chemical analysis, tensile testing, or coating inspection

Quantity for prototype, validation batch, outage spare parts, or repeat production order

Target delivery schedule and shipping destination

Why Work with NewayAeroTech for Custom Superalloy Hot Section Parts?

Custom GE 9E / 9171E hot section parts require more than general casting or machining capability. The supplier must understand superalloy behavior, hot-section geometry, casting defects, machining allowance, coating compatibility, cooling features, inspection planning, and documentation requirements. A successful project depends on the full process chain, from material selection and manufacturing route design to final inspection and delivery records.

NewayAeroTech provides integrated manufacturing support for high-temperature alloy components, including casting, post-processing, machining, EDM, deep hole drilling, coating, welding, and material testing. For nozzles, buckets, vanes, shrouds, combustion liners, transition pieces, and other gas turbine hot section parts, we can help evaluate the best route based on customer drawings, samples, material specifications, service conditions, and quality requirements.

GE 9E and 9171E names are used here only to describe turbine-frame application requirements. NewayAeroTech focuses on custom manufacturing of superalloy components according to customer-provided drawings, specifications, samples, and project requirements.

FAQ

1. What GE 9E / 9171E gas turbine parts can be custom manufactured from superalloys?

2. Which manufacturing process is suitable for GE 9E turbine nozzles, buckets, and vanes?

3. What materials are used for GE 9E hot gas path components?

4. How are cooling holes, coating surfaces, and wear areas manufactured on GE 9E turbine buckets?

5. What inspection reports are needed for GE 9E / 9171E replacement hot section components?
