Hot Gas Path Parts Manufacturing for Power Generation Gas Turbine Repair

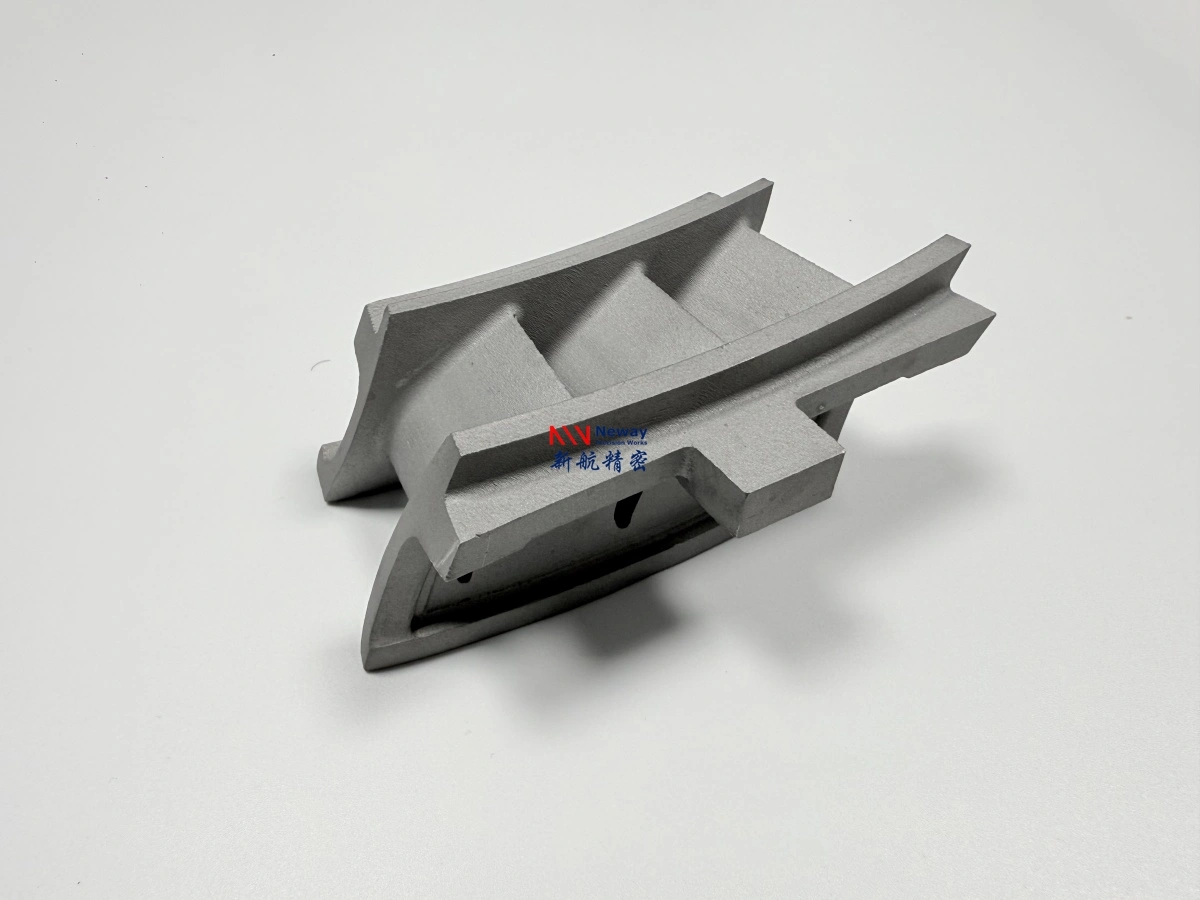

NewayAeroTech manufactures custom hot gas path parts for power generation gas turbine repair and replacement projects. These components can include turbine blades, turbine vanes, nozzle guide vanes, gas turbine nozzles, shrouds, seal segments, blade ring segments, and other high-temperature hot section replacement parts.
For power plant maintenance teams, turbine repair companies, and gas turbine spare parts buyers, hot gas path parts are not isolated components. They work as a complete high-temperature system where gas flow, sealing, cooling, coating condition, material strength, and assembly accuracy must be controlled together.
NewayAeroTech supports power generation turbine parts manufacturing through integrated superalloy casting, CNC machining, EDM, deep hole drilling, heat treatment, coating preparation, post-processing, and inspection for custom hot section repair parts.
Direct Answer: Hot Gas Path Parts for Gas Turbine Repair

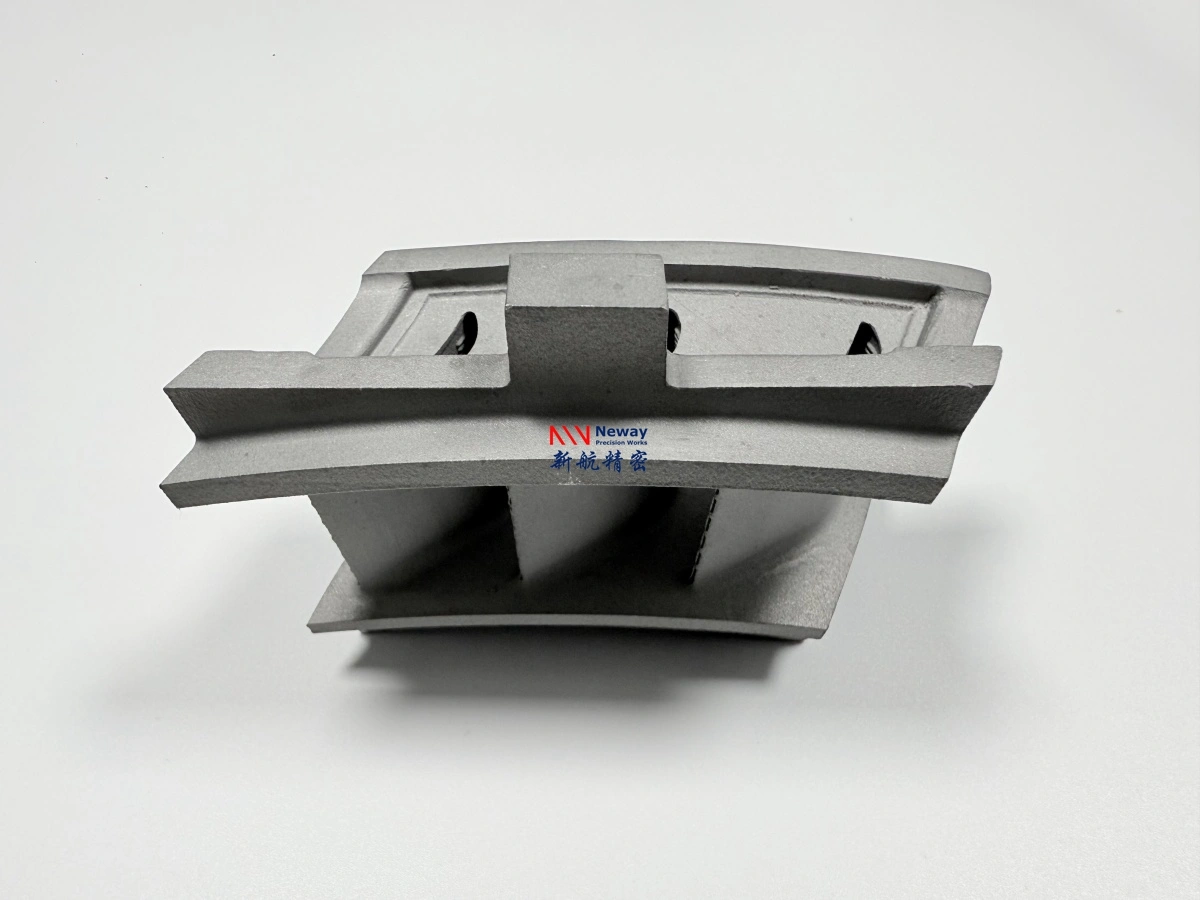

NewayAeroTech manufactures custom hot gas path parts for power generation gas turbine repair and replacement projects. Depending on the turbine model, part type, material requirement, crystal structure, cooling design, and inspection standard, the manufacturing route may include vacuum investment casting, single crystal casting, directional casting, equiaxed crystal casting, CNC machining, EDM, deep hole drilling, post-processing, and final inspection.
Our hot gas path parts manufacturing support can cover:
Turbine blades and buckets
Turbine vanes, stator vanes, and nozzle guide vanes
Gas turbine nozzles and nozzle segments
Turbine shrouds and seal segments
Blade ring segments and hot gas path blocks
Cooling-feature components, sealing components, and custom superalloy repair parts
The goal is to provide finished or semi-finished hot section replacement parts with controlled material condition, accurate geometry, reliable machining, clean cooling features, coating-ready surfaces, and inspection documentation.
What Are Hot Gas Path Parts?
Hot gas path parts are components located in the high-temperature flow path of a gas turbine. They are exposed to hot combustion gas, thermal gradients, oxidation, vibration, pressure fluctuation, and repeated start-stop cycles. In power generation turbines, these parts directly affect turbine efficiency, output stability, maintenance cost, and outage planning.
Typical hot gas path components include:
Turbine blades that extract energy from hot gas flow
Turbine vanes and nozzle guide vanes that control gas direction and stage matching
Gas turbine nozzles that guide and accelerate flow into turbine stages
Shrouds and seal segments that control blade tip clearance and gas leakage
Hot section blocks, inserts, brackets, and sealing components used around the turbine flow path
Because these components work together, a supplier should understand the complete hot gas path package rather than treating each part as a simple casting or machined item.
Why Hot Gas Path Parts Fail
Hot gas path parts fail because they operate under severe temperature, stress, and environmental conditions. Even when the original material and coating system are suitable, long-term service can gradually damage the part and change its geometry or surface condition.
Common failure modes include:
High-temperature oxidation on gas-facing surfaces
Thermal fatigue cracks caused by repeated start-stop operation
Creep deformation in high-temperature loaded components
Coating spalling, erosion, or thermal barrier coating loss
Cooling hole blockage caused by deposits, oxidation, or coating buildup
Blade tip wear, rubbing, or shroud sealing surface damage
Internal casting defects or cracks found during outage inspection
Distortion of platforms, sealing faces, mounting features, or flow-path geometry
When these defects exceed the repair limit, replacement parts are required to restore gas path performance, sealing efficiency, cooling function, and hot section reliability.
Manufacturing Route for Hot Gas Path Parts
Hot gas path parts usually require a combined manufacturing route. Casting forms the main superalloy geometry, CNC machining finishes precision interfaces, EDM and drilling create holes or slots, heat treatment controls material condition, and post-processing prepares the part for coating or delivery.
A typical manufacturing route may include:
Review turbine model, part number, drawings, old samples, or 3D scan data
Confirm alloy grade, crystal structure, heat treatment, coating, and inspection requirements
Select casting route, such as vacuum investment casting, single crystal casting, directional casting, or equiaxed casting
Produce the superalloy blank with machining and coating allowance
Apply heat treatment or post-casting processing according to the alloy requirement
Machine platforms, roots, sealing surfaces, datum faces, mounting features, and fit-up interfaces
Use EDM or deep hole drilling for cooling holes, slots, and local airflow features
Prepare surfaces for coating, cleaning, polishing, or customer-specified post-process
Inspect material, casting soundness, dimensions, surface defects, cooling features, and final geometry
NewayAeroTech provides vacuum investment casting for complex superalloy hot section components where near-net-shape geometry and downstream machining control are required.
Casting Options for Hot Section Components
Different hot gas path components may require different casting methods. The correct process depends on whether the part is rotating or static, its temperature exposure, stress direction, alloy type, geometry, and original specification.
Single crystal casting may be required for advanced turbine blades where grain boundary elimination and crystal orientation are critical. Directional casting can be used for turbine components that require controlled grain growth and improved high-temperature performance along a preferred direction. Equiaxed crystal casting is practical for many static hot section components such as vanes, nozzle segments, shrouds, and seal parts where a balanced cast grain structure is suitable.
Casting Route | Typical Hot Gas Path Application | Main Manufacturing Value |
|---|---|---|
Vacuum investment casting | Blades, vanes, nozzles, shrouds, and custom superalloy parts | Forms complex near-net-shape geometry with reduced machining waste |
Single crystal casting | Advanced high-temperature turbine blades | Supports severe hot-section service where crystal orientation is required |
Directional casting | High-temperature turbine blades and selected vane components | Improves performance along the main loading direction |
Equiaxed crystal casting | Static hot section parts, nozzles, vanes, shrouds, and seal segments | Provides a practical casting route for many non-rotating hot gas path parts |
The casting route should follow the original design requirement. For replacement parts, simplifying the casting method without engineering review may create service risk or customer approval issues.
Material Selection for Hot Gas Path Parts
Hot gas path parts are commonly manufactured from nickel-based superalloys, cobalt-based alloys, single crystal alloys, and other high-temperature materials. Material selection depends on turbine model, part stage, operating temperature, stress level, hot corrosion condition, coating system, and original drawing requirement.
NewayAeroTech supports Inconel alloy vacuum investment casting for nickel-based hot section components such as blades, vanes, nozzles, and shrouds. For cobalt-based wear and hot corrosion applications, Stellite alloy vacuum investment casting can be reviewed. Rene alloys, CMSX materials, Hastelloy alloys, and other customer-specified superalloys may also be selected according to the part function and service condition.
Typical material groups include:
Inconel alloys for nickel-based hot-section casting and machining applications
Rene alloys for advanced turbine hot-section performance requirements
CMSX series alloys for single crystal turbine blade applications
Stellite and other cobalt-based alloys for wear and hot corrosion resistance
Hastelloy alloys for corrosion-resistant and selected high-temperature components
Customer-specified equivalent alloys verified by material analysis and engineering review
For replacement parts, the material should be confirmed from drawings, certificates, sample analysis, or original turbine specifications. Selecting a visually similar alloy is not sufficient for hot gas path service.
CNC Machining and EDM for Finished Hot Section Parts
Casting provides the near-net-shape blank, but finished hot gas path parts require precision machining. CNC machining controls assembly interfaces, sealing faces, blade roots, platforms, mounting slots, datum surfaces, and other functional features.
NewayAeroTech provides superalloy CNC machining for difficult-to-machine nickel-based, cobalt-based, and single crystal alloy components. This capability is important because hot section parts often require tight tolerances on hard, heat-resistant materials.
EDM may be used for holes, slots, sharp corners, cooling features, and tool-access-limited areas. For blades, vanes, nozzles, and shrouds, EDM processing must control edge quality, recast layer, feature location, and post-EDM cleaning before coating or final inspection.
Typical machining and EDM focus areas include:
Blade roots, platforms, and tip-related features
Vane platforms, sealing faces, and throat-area-related features
Nozzle mounting surfaces, flow-path boundaries, and cooling features
Shroud arc profiles, segment interfaces, seal faces, and mounting slots
Datum surfaces used for CMM, profile, and assembly inspection
Deep Hole Drilling and Cooling Feature Control
Cooling features are critical for many hot gas path components. Cooling holes, airflow passages, film cooling features, and local slots help control part temperature and improve hot section durability. If these features are blocked, misplaced, oversized, undersized, or damaged, service reliability can be affected.
Cooling feature control should focus on:
Hole diameter, position, angle, and pattern consistency
Airflow passage cleanliness and blockage prevention
Edge quality after drilling or EDM
Wall thickness around cooling features
Compatibility with coating thickness and masking requirements
Final inspection before delivery or assembly
For complex hot section parts, cooling features should be reviewed during quotation because they can strongly affect cost, lead time, inspection method, and final part performance.
Superalloy Post Process and Coating Preparation
Hot gas path parts often require heat treatment, stress relief, HIP review, cleaning, polishing, surface preparation, coating preparation, or other post-processing before delivery. These steps are important because hot-section performance depends on material condition and surface quality.
NewayAeroTech supports superalloy post process to connect casting, machining, heat treatment, surface cleaning, coating preparation, and final inspection into one manufacturing route.
Post-processing may include:
Solution and aging heat treatment according to alloy requirements
Stress relief after casting, machining, or EDM where required
HIP review for selected cast components with internal density requirements
Deburring, polishing, and edge finishing
Surface preparation before oxidation-resistant or thermal barrier coating
Cleaning of cooling holes, slots, and airflow features
Final dimensional and surface inspection before delivery
If coating is required, coating allowance and masking areas should be defined before final machining. Otherwise, the part may pass pre-coating inspection but fail final assembly after coating thickness is added.
Critical Quality Controls for Hot Gas Path Components
Hot gas path parts require strict quality control because they affect turbine efficiency, combustion stability, sealing performance, cooling function, and hot section reliability. Inspection should verify both manufacturing quality and functional geometry.
Control Item | Typical Components | Why It Matters |
|---|---|---|
Airfoil profile | Blades, vanes, nozzle guide vanes | Controls gas flow, efficiency, and stage matching |
Throat area | Vanes, NGVs, nozzles | Affects gas velocity, pressure distribution, and turbine performance |
Platform and sealing surfaces | Blades, vanes, nozzles, shrouds | Ensures assembly fit and reduces hot gas leakage |
Cooling holes | Blades, nozzles, liners, transition pieces | Controls local temperature and thermal protection |
Internal casting defects | Cast blades, vanes, nozzles, shrouds | Reduces risk from shrinkage, porosity, cracks, and inclusions |
Surface cracks | All hot section parts | Helps prevent crack growth during thermal cycling and service |
Common inspection methods include CMM inspection, FPI, X-ray, CT, material verification, heat treatment report review, cooling hole inspection, airfoil profile measurement, throat area inspection, and surface quality checks.
Repair Project Support from Old Parts, Drawings, and 3D Scan Data
Many power generation gas turbine repair projects begin with old parts, incomplete drawings, or 3D scan data. In these cases, the supplier must understand how to reconstruct functional geometry and avoid copying service damage.
NewayAeroTech can support hot gas path repair projects based on:
Original drawings and 3D CAD files
Used hot section samples
3D scan data and reconstructed models
CMM data and inspection reports
Material analysis from old parts
Turbine model, stage number, and operating condition information
Small-batch repair demand or annual maintenance spare parts planning
For reverse-engineered hot gas path parts, worn surfaces, cracked regions, coating loss, blocked cooling holes, and deformed interfaces should not be copied directly. Functional geometry must be rebuilt according to flow control, sealing, cooling, assembly, and service requirements.
Hot Gas Path Package Supply for Power Generation Repair
Instead of evaluating only one blade, one vane, or one nozzle, many repair projects require a hot gas path package. This may include multiple related components that must fit and function together within the turbine section.
A hot section repair package may include:
Replacement turbine blades and buckets
Replacement turbine vanes and nozzle guide vanes
Gas turbine nozzles and nozzle segments
Turbine shrouds, seal segments, and blade ring segments
Cooling-feature components and sealing parts
Custom hot gas path blocks, brackets, sleeves, and inserts
This system-level supply capability helps reduce communication gaps between different suppliers and supports better control over material consistency, process sequence, fit-up requirements, inspection records, and delivery timing.
Supplier Value for Hot Gas Path Replacement Projects
A qualified hot gas path parts manufacturer should provide more than casting capacity. The supplier should understand turbine function, material behavior, casting route, machining datum, cooling feature processing, coating preparation, and inspection requirements.
NewayAeroTech supports hot gas path replacement projects by providing:
Superalloy material and equivalent alloy review
Vacuum investment casting, single crystal casting, directional casting, and equiaxed casting options
CNC machining for roots, platforms, sealing faces, mounting slots, and datum surfaces
EDM and drilling support for holes, slots, and cooling features
Heat treatment, post-processing, and coating preparation support
X-ray, FPI, CT, CMM, material verification, and final documentation
Reverse engineering support from samples, drawings, 3D scan data, and CMM data
This integrated manufacturing route is valuable for power plant repair projects where outage schedules, spare parts availability, and final inspection acceptance are critical.
RFQ Checklist for Hot Gas Path Parts
To quote hot gas path parts accurately, customers should provide information about the turbine model, part geometry, material, coating, inspection, and repair schedule. This helps the supplier evaluate manufacturing route, tooling cost, inspection requirements, and delivery risk.
A complete RFQ should include:
Turbine model, component name, stage number, part number, and revision level
2D drawing and 3D CAD file if available
Used sample, photos, 3D scan data, or CMM report if reverse engineering is required
Required alloy grade, acceptable alternatives, and material standard
Casting route requirement, such as vacuum investment, single crystal, directional, or equiaxed casting
Heat treatment, HIP, coating, or post-processing requirements
Cooling holes, throat area, blade root, platform, sealing surface, or shroud segment fit requirements
Inspection requirements such as FPI, X-ray, CT, CMM, material report, coating report, or heat treatment report
Quantity for prototype, repair batch, annual maintenance, or long-term spare parts program
Delivery schedule, outage timing, packaging, and documentation requirements
If the project is based on used parts, customers should identify worn areas, cracks, coating loss, blocked cooling holes, previous repair zones, and functional surfaces. This helps prevent reverse engineering errors and supports a more reliable replacement part solution.
