The Importance of Defect Detection in Alloy Casting Manufacturing

Defect detection in alloy casting starts with naming the defect, its critical zone, the manufacturing stage, and the inspection capability. Surface cracks, shrinkage, gas porosity, inclusions, ceramic residue, misruns, grain anomalies, wall loss, and dimensional movement do not respond to one universal method. A pass statement without coverage and acceptance is not useful release evidence.

For this RFQ, buyers should define exact alloy and casting structure, component geometry, critical zones, defect types, acceptance source, method and sensitivity, inspection stage, sampling or full coverage, report content, and disposition authority. The foundry should link indications to process records so detection supports prevention.

Build a Defect Taxonomy Before Choosing NDE

Use consistent defect terms in drawing, NDE procedure, report, nonconformance, and corrective action. Calling every dark radiographic area “porosity” or every FPI indication “crack” can drive the wrong process response.

Identify allowable and prohibited zones. A pore near finish stock, cooling wall, seal, fillet, or highly stressed transition may need different acceptance from the same indication in a removable gate remnant.

Detect Surface-Connected Conditions Before They Are Hidden

Visual inspection can identify laps, tears, misruns, surface reaction, excessive blend, shell or core breakthrough, and workmanship conditions. Fluorescent penetrant can reveal selected surface-breaking indications after cleaning and suitable surface preparation.

Define cleaning, blasting or etching restrictions, lighting, dwell, developer, sensitivity, evaluation, and acceptance according to the governing procedure. Rough as-cast surfaces can create background and relevant indications can be altered by aggressive blending.

Inspect before weld filler, coating, peening, or heavy finishing hides the original surface. Repeat after heat treatment, straightening, repair, or final machining when those operations can create or expose indications.

Use Radiography for Defined Projection Questions

Radiography records projected attenuation through the casting and can detect selected volumetric density changes. Sensitivity depends on alloy density, section thickness, orientation, geometry, source, detector, exposure, and reference standards. Overlapping features can hide or confuse indications.

Define views, coverage, image-quality requirement, critical zones, acceptance class, marking, and report. A few convenient views do not provide whole-part coverage if complex passages or thick transitions overlap.

Radiography can indicate porosity, shrinkage, inclusions, or geometry under suitable conditions, but it may not resolve tight planar cracks aligned unfavorably or characterize every material type. Use complementary methods where required.

Use CT When Three-Dimensional Location Changes the Decision

Industrial CT can reconstruct three-dimensional attenuation and support location, size, connectivity, wall, core, passage, and dimensional questions. Capability depends on part size, section, material density, voxel size, system geometry, artifacts, reconstruction, and threshold method.

State the minimum feature or engineering question rather than request “high resolution.” Define scan zone, orientation, permitted fixtures, reconstruction, artifact handling, analysis method, dimensional calibration if needed, and data deliverables.

CT segmentation can change measured pore or wall size. Use approved thresholds or reference artifacts and preserve raw data. A rendered image without scan parameters and scale is not sufficient evidence.

Evaluate Inclusions and Core Residue Separately from Porosity

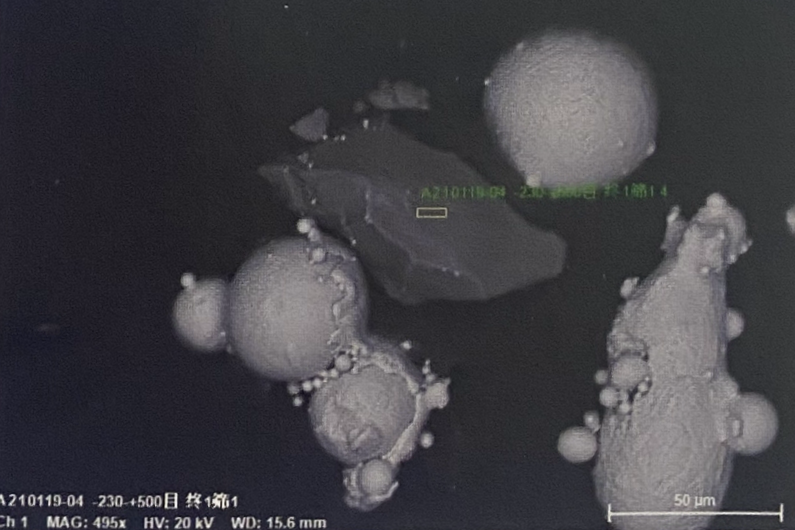

Inclusions contain foreign material and are not closed voids. Their detectability depends on density contrast, size, shape, orientation, and location. Ceramic residue in a passage can restrict flow without appearing like a typical internal pore.

Use melt, shell, core, pouring, filtration, cleanup, and leaching records to support root cause. Sections, chemistry, microscopy, CT, radiography, borescope, flow, or cleanliness tests can answer different inclusion and residue questions.

HIP may close eligible sealed porosity but does not remove an inclusion or clear a blocked passage. Do not reclassify foreign material as a densification problem.

Inspect Grain Structure and Crystal Orientation with Specific Methods

Equiaxed castings can require grain-size or grain-distribution evidence. Directionally solidified castings can require columnar growth and boundary controls. Single-crystal castings can require primary orientation, low-angle boundary, stray grain, freckle, sliver, or recrystallization checks.

Grain display, orientation measurement, X-ray methods, metallography, or other approved techniques each address selected features. Define coordinate system, allowed deviation, critical zones, sample locations, and acceptance.

Volumetric NDE does not replace crystal-structure acceptance. Likewise, a compliant orientation result does not prove absence of porosity, inclusion, or passage blockage.

Measure Dimensions and Wall as Defect Evidence

Tooling variation, wax distortion, shell movement, core shift, uneven cooling, heat treatment, HIP, straightening, and machining can create wall, profile, hole, flatness, runout, or datum errors. Geometry can be a manufacturing defect even when material NDE is clean.

Use CMM, scanning, radiography or CT wall analysis, gauges, templates, flow, and feature-specific fixtures as appropriate. Define free or restrained measurement, support, datum, temperature, and stage.

Compare core and passage geometry with the external surface. A nominal outside profile does not prove internal wall or cooling location. First-article maps can identify repeat tooling offsets and variable process movement.

Place Inspections at Decision-Efficient Stages

Inspect early enough to avoid adding value to a reject, but late enough for the defect to be detectable. Incoming wax or shell checks can prevent casting problems; as-cast NDE can screen before HIP or machining; post-HIP inspection can confirm the densification question; final-surface checks catch opened pores.

Build hold points after core removal, gate cutoff, heat treatment, repair, rough machining, EDM, coating preparation, and final machining as the route requires. Do not wait until final inspection to discover a defect created several suppliers earlier.

At every stage, state whether a failure stops the route, triggers engineering review, allows controlled rework, or changes inspection coverage. This reduces informal disposition.

Correlate Indication Maps with Casting Process Records

Link defect location with gating, feeders, section thickness, shell, core, mold orientation, furnace position, pouring parameters, solidification or withdrawal settings, cutoff, heat treatment, repair, and lot. Spatial patterns can reveal a process source that a pass/fail count hides.

Trend indication type, size, zone, frequency, and severity. A rising cluster near one junction can signal feeding or core drift before total rejection increases. Use consistent zone names and defect codes.

Corrective action should address the supported source, then validate with targeted first articles and production monitoring. Adding inspection without process correction detects more rejects but does not improve yield.

Protect the Original Evidence During Nonconformance Review

Preserve original images, scan data, FPI records, part orientation, photographs, dimensions, and process records. Do not blend, weld, cut, or open the indication before the review authorizes evidence removal.

The nonconformance should state part and lot, requirement, actual indication, location, size or evaluation, method, affected quantity, suspected cause, proposed action, and approval authority. Keep initial failure, rework, and reinspection results.

Retest rules should be defined in advance. Repeating a scan with different threshold, view, or sensitivity must be documented and should not erase the first result.

Use Destructive Sections to Validate NDE Capability

Qualification sections can compare radiography, CT, ultrasonic, grain or surface findings with actual internal condition. Mark section planes and preserve registration between indication and cut. Sample both detected and expected clean areas where the plan requires it.

Metallography can identify pore, inclusion, crack, phase, grain, recast, coating, or repair features locally. Use suitable preparation and analysis. A section that misses the indication does not automatically invalidate the NDE; registration and material removal need review.

Use representative alloy, thickness, geometry, and defect location when establishing method capability. Reference blocks and artificial defects can support calibration but may not reproduce natural morphology.

Define First-Article and Production Inspection Separately

First article can use broader CT, dimensions, grain, sections, or destructive hardware to validate tooling, cores, process, and NDE. Production inspection may use qualified methods and sampling suited to stable controls. State the transition and evidence required.

Freeze or control alloy source, tooling, wax process, shell and core, gating, furnace, pouring, withdrawal, cutoff, HIP, heat treatment, repair, machining, and inspection methods. Define changes that trigger repeat first article or increased coverage.

Production monitoring should trend both process variables and defect results. Qualification does not excuse later drift or unapproved source changes.

Prepare a Defect-Detection RFQ

Provide the controlled drawing and model, alloy and casting structure, critical zones, expected defects, acceptance standards, casting and post-process route, NDE methods, views and coverage, CT requirements, grain or orientation checks, dimensions and wall, inspection stages, sampling, first article, reports, raw data, record retention, and disposition process.

Ask suppliers to separate method development, reference standards, fixtures, radiography views, CT setup and analysis, FPI, ultrasonic work, grain or orientation inspection, dimensions, destructive sections, data review, documentation, and recurring production cost.

Defect detection protects the buyer when methods are selected by defect and geometry, used at the right stage, and connected to process prevention. A generic final inspection note cannot provide that control.
