Direct Answer Summary
Inconel and Rene alloy HIP review should be handled as a material-route decision, not as a generic heat-treatment add-on. For hot-section components, the useful question is how the specified alloy, casting condition, heat treatment expectation, machining allowance, inspection evidence, and final service environment fit together before the supplier quotes the route.
NewayAeroTech can review alloy-specific requirements for superalloy heat treatment, HIP, machining, EDM, coating preparation, and inspection when the RFQ includes drawings, material specifications, quantity, and finished-condition requirements. This is custom manufacturing support for turbine and hot-section projects, not catalogue resale of original OEM inventory parts.

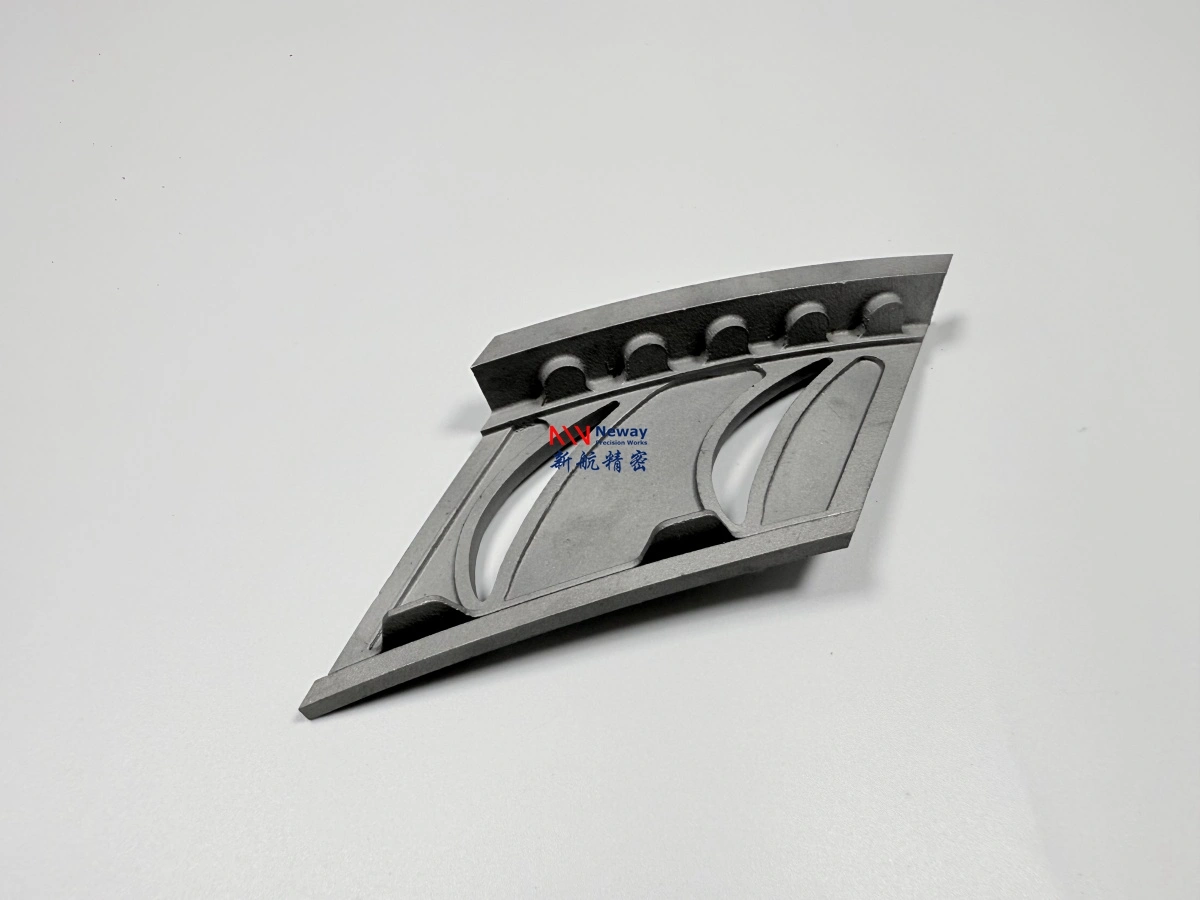

Material Route Review for Inconel and Rene Components
A useful supplier answer should make the route visible early. Buyers should be able to see what is included, what is conditional, what needs customer confirmation, and which inspection records are part of the quoted scope.
Material / Requirement | What Buyers Should Check | Risk if Missing |
|---|---|---|
Inconel 713C / 713LC | Casting route, HIP need if specified, heat treatment expectation, and FPI or X-ray evidence. | The quote may miss casting-condition and acceptance-record limits. |
Inconel 738LC | Hot-section function, coating preparation, wall thickness, and final dimensional evidence. | Thermal processing may be priced without downstream finishing risk. |
Inconel 718 | Heat treatment sequence, mechanical record need, machining condition, and delivery state. | Material processing may be separated from finished-part requirements. |
Rene alloys | Customer specification, microstructure evidence, inspection standard, and engineering review boundary. | Supplier answers may become too broad for controlled turbine parts. |
Nickel-based superalloys | Whether the drawing controls chemistry, heat condition, inspection method, and application duty. | The material may be treated as a generic high-temperature alloy. |
Why Alloy Route Responsibility Matters
Material names are not enough for a reliable RFQ. The same alloy family can require different review when the component is a vane, blade, nozzle, seal segment, heat shield, or structural hot-section part. Final machining, EDM slot work, coating preparation, and dimensional inspection can be costly to repeat if the thermal route or defect evidence is clarified too late.
For these applications, route definition should connect the selected alloy, such as Inconel 713C, Inconel 738LC, Inconel 718, Rene alloys, or other nickel-based superalloys, with HIP, heat treatment, machining, coating preparation, and inspection requirements. This is especially important for turbine blades, vanes, nozzles, heat shields, and other hot-section castings. This keeps the quote tied to the real part instead of treating HIP, heat treatment, machining, and inspection as unrelated purchasing lines.
Heat Treatment and HIP Sequence from RFQ to Delivery
Route Step | Purpose | Buyer Checkpoint |
|---|---|---|
Drawing and sample review | Confirm revision, alloy grade, component function, critical surfaces, and customer standards. | Provide 2D drawing, 3D model, sample photos, or inspection notes. |
Starting condition review | Confirm whether the as-cast, pre-machined, or repaired condition supports the requested HIP RFQ review. | State whether the part is as-cast, pre-machined, repaired, or previously processed. |
HIP and heat treatment planning | Define thermal route assumptions, processing records, and superalloy heat treatment sequence with machining or coating. | List required standards, heat condition, and report expectations. |
CNC / EDM / coating preparation | Plan finishing through superalloy post-processing when part geometry requires controlled features. | Identify datums, sealing faces, cooling features, slots, and coating surfaces. |
Final inspection and delivery | Confirm CMM, FPI, X-ray, metallography, GDMS, mechanical records, packaging, and exclusions. | Separate mandatory records from optional review data. |
Component Fit for Inconel and Rene Hot-Section Parts
Material fit should be written in engineering terms, not as an alloy list. Inconel 713C and Inconel 738LC are often discussed for cast hot-section components where oxidation resistance, castability, and high-temperature strength need balanced review. Inconel 718 may bring different heat-treatment and mechanical-record expectations, while Rene alloys or other nickel-based superalloys may require customer-controlled specifications and stricter evidence.
Component fit also changes the route. A turbine vane with thin walls, a turbine blade with root and airfoil features, a nozzle with local passage details, or a heat shield with sealing interfaces can each require different machining allowance, inspection access, and report timing after HIP or heat treatment.
The same material note can therefore lead to different supplier questions. A blade project may focus on root fit and airfoil evidence, while a heat shield may focus on sealing faces, coating preparation, and distortion after thermal processing.

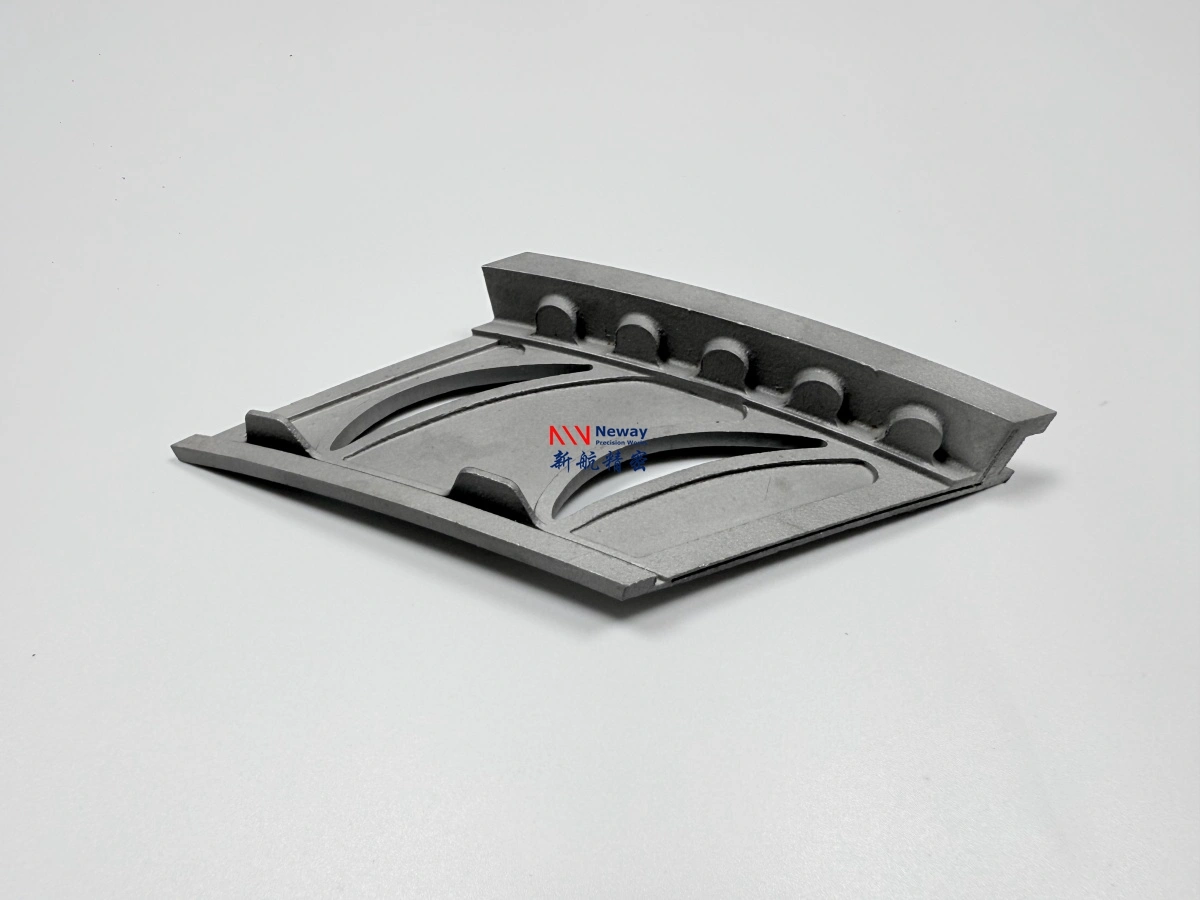

Inspection Records for Material Route Approval
Inspection requirements should be named before supplier comparison. CMM inspection may be needed for datum features, root areas, mounting faces, sealing surfaces, or other finished dimensions. FPI, X-ray, CT, metallography, GDMS, chemical analysis, hardness, tensile testing, and heat-treatment records should be added when the drawing or customer standard requires them.
The inspection plan should explain which checks occur before final machining, which checks occur after finishing, and which reports ship with the parts. Without that split, two suppliers may quote very different scopes while appearing to answer the same RFQ.
Critical Surfaces and Acceptance Evidence
The buyer should identify critical surfaces before asking suppliers to price the route. Root features, sealing faces, platform edges, cooling details, thin-wall areas, and coating surfaces may need different inspection timing after HIP, heat treatment, machining, or EDM.
Material records should be discussed in the same review as dimensional records. For Inconel 713C, Inconel 738LC, Inconel 718, Rene alloys, and other nickel-based superalloys, the RFQ may need chemical analysis, heat-condition notes, hardness or mechanical testing, metallography, or customer-specific evidence depending on the specification.
When acceptance language is incomplete, the supplier should avoid absolute claims. Conditional language is safer for superalloy turbine parts because final acceptance should stay tied to the drawing, customer specification, and agreed inspection evidence.
Supplier Fit for Alloy-Specific HIP Projects
Supplier fit should be judged by the complete route, not by one process name. The table below separates suitable custom-manufacturing work from requests that should be handled as catalogue spare-part sourcing.
Project Requirement | Fit for NewayAeroTech | Commercial Note |
|---|---|---|
Custom turbine and hot-section components | Suitable when drawings, material grades, quantity, and inspection needs are provided. | Best for drawing-based manufacturing, not catalogue resale. |
Casting plus post-processing route | Suitable when casting, heat treatment, HIP, CNC, EDM, coating preparation, and inspection need one route review. | Scope should define blank, semi-finished, or finished delivery. |
High-temperature alloy inspection | Suitable when CMM, FPI, X-ray, metallography, GDMS, chemical analysis, or mechanical testing records are required. | Reports should be listed before supplier comparison. |
Prototype or repeat production | Suitable when the RFQ states project stage, revision control, and acceptance evidence. | Prototype work may need more open engineering questions. |
Original OEM spare parts inventory | Not the right fit. NewayAeroTech does not sell original OEM inventory parts. | Quote as custom manufacturing from customer requirements. |
Project Stage and Commercial Scope
Development lots and repeat production need different handling. A development lot may need broader engineering feedback around defect evidence and manufacturability, while repeat production usually needs stable revision control, inspection templates, and consistent delivery records.
Buyers should compare exclusions, not only included steps. Third-party inspection, witness points, destructive testing, metallographic samples, special packaging, revision-specific reports, or customer document formats may need separate quotation if they are not listed in the base scope.
If two quotes appear close in price, compare the evidence behind the price. A quote that includes route review, controlled reports, and finished-condition responsibility may reduce later clarification work even when the first number is not the lowest.
RFQ Data for Material and Heat-Treatment Review
RFQ Information | Why It Matters |
|---|---|
2D drawing and 3D model | Defines geometry, tolerances, datum references, feature access, and machining allowance. |
Material grade and specification | Controls alloy responsibility, heat route, HIP assumptions, and acceptance evidence. |
Quantity and order stage | Separates prototype, pilot lot, repair review, replacement, and repeat-production logic. |
Finished condition | Clarifies blank, HIP-treated blank, machined part, coated part, or final inspected delivery. |
Inspection standard | Defines CMM, FPI, X-ray, metallography, GDMS, report format, and timing. |
Application environment | Helps review temperature, corrosion, fatigue, wear, coating need, and high-temperature service risk. |
Commercial Notes for Alloy Route Comparison
A short supplier reply can still be useful when it separates confirmed scope from assumptions. For example, the supplier may confirm that HIP can be reviewed after casting but keep heat-treatment sequence, destructive testing, coating preparation, or final report format subject to the customer specification.
A practical supplier review should leave the buyer with a short list of decisions: confirmed steps, conditional steps, required documents, optional reports, exclusions, and delivery condition. That format is easier for procurement and engineering teams to approve than a long capability statement with no quote boundaries.
Before order release, the buyer and supplier should agree how open technical points will be closed. That may include drawing revision confirmation, sample approval, report format, inspection hold points, or a written note that a requirement remains subject to engineering review.
Conclusion
A material-specific HIP and heat-treatment review is useful when the buyer needs the supplier to connect alloy requirements with a finished turbine-component route. NewayAeroTech can review the drawing package and suggest a custom route for superalloy turbine blades, vanes, nozzles, heat shields, and other hot-section components, subject to geometry, material, and customer requirements.
For quotation, send drawings, material grade, quantity, tolerance requirements, surface condition, heat treatment or HIP notes, coating expectations, inspection standards, and any sample or application background. That gives purchasing and engineering teams a clearer basis for comparing supplier scope, risk, and documentation.
