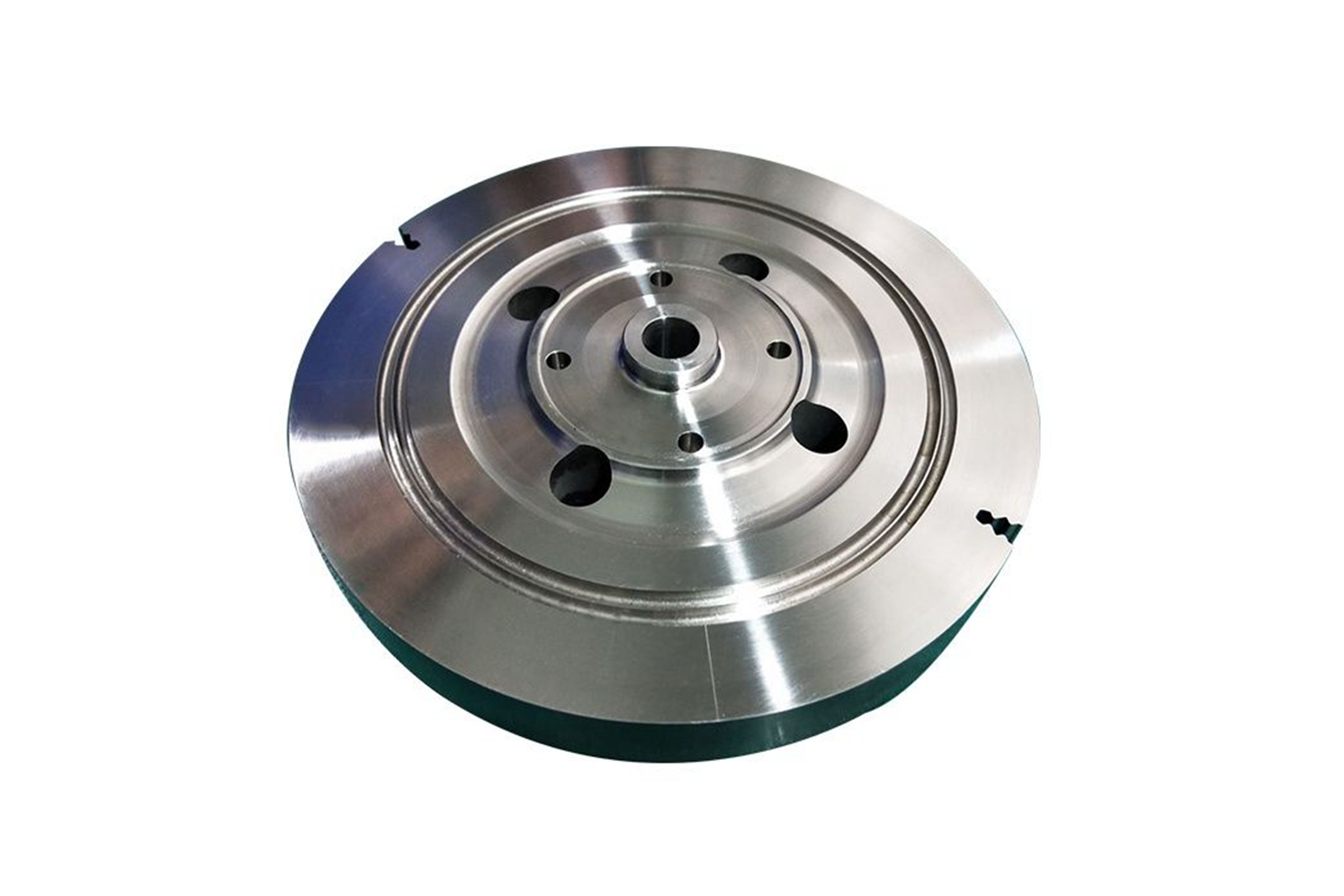

Superalloy Powder Metallurgy Gas Turbine Disc

Core Technology of Superalloy Powder Metallurgy

1. Gas Atomization: High-quality superalloy powders produced with spherical particles (10–100 µm), ensuring consistent chemical composition and high purity.

2. Powder Consolidation (HIP): Powders compacted by Hot Isostatic Pressing (HIP) at pressures of 150 MPa and temperatures of 1150–1200°C, eliminating porosity (<0.1%).

3. Near-Net Shape Forging: Forging performed at ~1100°C to form turbine discs close to final geometry, minimizing subsequent machining allowances to 2–5 mm.

4. Precision Heat Treatment: Customized cycles (solution annealing at 1150°C, aging at 750–800°C) develop ideal microstructures and mechanical properties, ensuring superior fatigue strength.

5. Advanced CNC Machining: Final precision machining achieves extremely tight tolerances (±0.01 mm), maintaining precise geometrical and dimensional control.

6. Surface Enhancement: Application of specialized coatings, such as Thermal Barrier Coating (TBC), improves oxidation resistance and thermal efficiency.

Material Characteristics of Powder Metallurgy Superalloys

Case Study: Superalloy Powder Metallurgy Gas Turbine Disc

Project Background

A global leader in power generation required high-performance gas turbine discs to operate under severe thermal cycling and mechanical stress. Powder metallurgy superalloys were selected to achieve optimal durability, strength, and creep resistance under these extreme conditions.

Common Gas Turbine Disc Models and Applications

• Heavy-Duty Gas Turbine Discs: Designed for large-scale power plants, reliably sustaining operations exceeding 750°C and rotational speeds of 12,000 RPM.

• Aero-Derivative Gas Turbine Discs: Essential for flexible power generation, providing rapid startup capability and outstanding fatigue resistance through repeated cycles.

• Industrial Gas Turbine Discs: Robust discs supporting continuous industrial energy production, demonstrating high creep resistance and low maintenance requirements.

• Marine Gas Turbine Discs: Engineered for maritime propulsion systems, enduring harsh saline environments and prolonged high-temperature exposure.

Selection and Structural Features of Gas Turbine Discs

Advanced alloys such as Rene 95 and Udimet 720 were chosen for superior fatigue life, creep resistance, and thermal stability. Discs feature optimized bore configurations, controlled grain size, and minimal stress risers, enhancing structural integrity.

Gas Turbine Disc Component Manufacturing Solution

1. Superalloy Powder Production: Gas atomized powders with particle sizes between 10–100 µm achieve optimal chemical homogeneity and improved mechanical properties.

2. Hot Isostatic Pressing (HIP): Consolidation at 1150°C under 150 MPa ensures fully dense materials with porosity below 0.1%, achieving consistent mechanical performance.

3. Precision Forging: Controlled forging at ~1100°C refines microstructure, yielding superior fatigue resistance and dimensional accuracy within ±0.5 mm.

4. Optimized Heat Treatment: Solution annealing (1150°C) and aging (760–800°C) produce a robust microstructure, increasing tensile strength up to 1500 MPa.

5. Advanced CNC Machining: Precision machining processes deliver turbine discs with final tolerances within ±0.01 mm, ensuring precise dimensional control.

6. Surface Coatings and Treatments: Thermal Barrier Coatings significantly improve oxidation resistance, enabling sustained high-temperature operations.

7. Non-Destructive Testing (NDT): Rigorous radiographic (X-ray) and ultrasonic inspections verify defect-free internal structures.

8. Comprehensive Validation Testing: Fatigue, creep, and tensile tests rigorously assess operational reliability and confirm adherence to stringent industry standards.

Core Manufacturing Challenges

• Maintaining microstructural uniformity and minimal grain growth

• Achieving precise dimensional control within ±0.01 mm tolerance

• Eliminating internal porosity to levels below 0.1%

• Ensuring exceptional fatigue and creep performance under continuous thermal cycling

Results and Verification

1. Dimensional Precision: Coordinate Measuring Machine (CMM) confirmed dimensional accuracy consistently within ±0.01 mm.

2. Mechanical Strength Validation: Tensile strengths validated up to 1500 MPa and yield strengths consistently exceeded 900 MPa.

3. Fatigue and Creep Life: Verified operational life improvements over 30,000 cycles and stable creep resistance beyond 10,000 hours at temperatures up to 750°C.

4. Non-Destructive Quality Assurance: Passed comprehensive radiographic and ultrasonic examinations, ensuring internal integrity and zero-defect compliance.

5. Operational Reliability: Successfully tested under simulated operational conditions, demonstrating reliable performance and increased lifespan.

6. Surface Quality Verification: Confirmed surface roughness below Ra 1.6 µm, improving aerodynamic efficiency and significantly reducing wear.
