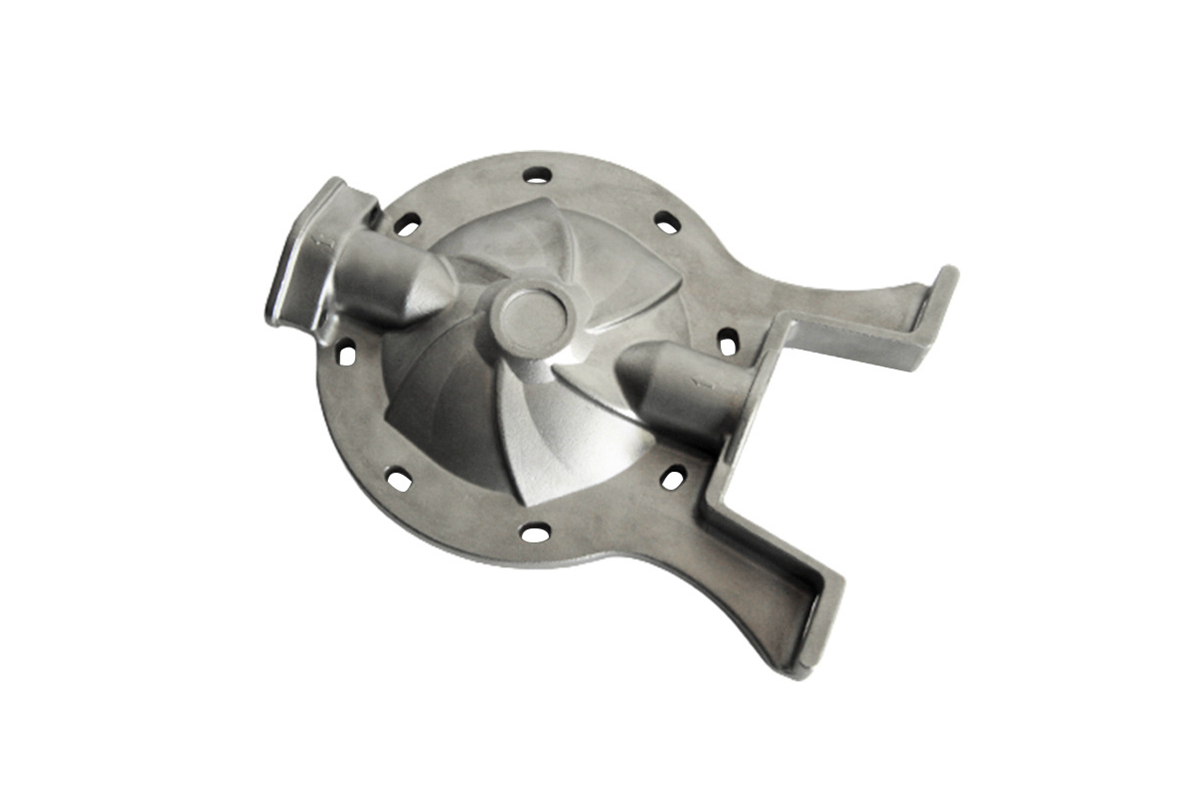

Monel R-405 Vacuum Investment Casting Pump Fitting Supplier
Introduction
Monel R-405 vacuum investment casting is an ideal solution for producing high-precision pump fittings used in corrosive service environments. At Neway AeroTech, we specialize in casting Monel R-405 components—such as elbows, couplings, and flanges—for chemical processing, marine applications, and energy systems.
Monel R-405 is a nickel-copper alloy with enhanced machinability due to controlled sulfur additions, offering excellent corrosion resistance in hydrochloric acid, hydrofluoric acid, alkalis, and seawater. Our vacuum investment casting process ensures fine surface finish, tight tolerances, and low gas porosity, making it ideal for small, complex pump fittings.
Core Technology of Monel R-405 Vacuum Investment Casting
Wax Pattern Assembly: Precision wax patterns are created with ±0.05 mm tolerance to replicate thread profiles, flow paths, and sealing lands.
Ceramic Shell Mold Construction: 7–10 ceramic layers are applied to build durable shell molds capable of withstanding the casting of nickel alloys at 1350–1450°C.
Vacuum Melting and Pouring: Monel R-405 alloy is melted and poured under vacuum (<10⁻² torr) to minimize oxidation and ensure internal purity.
Controlled Equiaxed Solidification: Casting is cooled to promote fine equiaxed grain structure (ASTM 4–6), enhancing mechanical strength and corrosion resistance.
Post-Casting Heat Treatment: Stress relief heat treatment is applied to improve dimensional stability and facilitate precision machining.
CNC Machining: Multi-axis CNC machining is used to finish threads, sealing surfaces, and flanged connections to ±0.02 mm.
Quality Control and Testing: All fittings undergo X-ray inspection and CMM measurement to ensure casting integrity and dimensional precision.
Material Properties of Monel R-405
Property | Value |
|---|---|
Composition | ~67% Ni, ~30% Cu, ~0.03%–0.06% S |
Yield Strength | ≥240 MPa |
Ultimate Tensile Strength | ≥550 MPa |
Elongation | ≥30% |
Machinability | Excellent (free-machining Monel grade) |
Corrosion Resistance | Excellent in seawater and strong acids |
Operating Temperature | Up to 550°C |
Case Study: Monel R-405 Pump Fittings for Offshore Desalination System
Project Background
A marine desalination plant required corrosion-resistant pump fittings compatible with hot seawater, brine, and chlorinated solutions. Monel R-405 was selected for its machinability, corrosion performance, and compatibility with threaded designs. Vacuum investment casting was chosen for its ability to produce tight-tolerance, high-integrity small fittings in production batches.
Applications of Monel R-405 Pump Fittings
Threaded Elbows and Unions: Used in pump discharge and return lines in marine and coastal environments exposed to chlorinated seawater.
High-Pressure Couplings: Provide robust leak-free connections in fluid loops carrying brine and aggressive acids.
Flanged Nozzle Adapters: Connect Monel piping to carbon steel pumps and equipment, offering galvanic corrosion protection and mechanical strength.
Valve and Sensor Ports: Precision-cast threaded fittings for control and instrumentation integration in chemical flow systems.
Manufacturing Process
Wax Pattern Injection and Assembly: Fitting patterns are molded and assembled into clusters optimized for thermal balance during casting.
Shell Mold Construction: Ceramic slurries and refractory stucco are applied to form a crack-resistant shell mold.
Vacuum Casting: Monel R-405 melted and poured at ~1400°C under vacuum to prevent oxidation and gas porosity.
Shell Removal and Cleaning: Shells are removed by vibration and blasting; castings are cleaned and acid-pickled to remove surface oxide.
Heat Treatment: Low-temperature stress relief ensures dimensional stability before final machining.
CNC Machining: Threads, sealing faces, and mating flanges machined to ±0.02 mm using advanced CNC systems.
Inspection and Final QA: X-ray confirms internal soundness; CMM and thread gauges ensure dimensional and functional compliance.
Results and Verification
Dimensional Precision: Threaded and flanged interfaces met ±0.02 mm tolerances, ensuring assembly compatibility and seal integrity.
Surface Finish: Flow path surfaces finished to Ra ≤ 1.6 µm; threads free of burrs and galling.
Corrosion Resistance: Passed 1000-hour salt spray and hydrochloric acid immersion testing with no measurable pitting.
Mechanical Strength: Tensile strength ≥550 MPa and elongation >30%, confirming pressure capability and long-term reliability.
Machining and Thread Quality: Excellent machinability ensured consistent threading and form accuracy across production batches.
FAQs
What are the benefits of using Monel R-405 for precision-cast pump fittings?
How does Monel R-405 compare to Monel 400 in terms of corrosion resistance and machinability?
Can Monel R-405 vacuum castings be used in high-pressure fluid systems?
What quality control methods ensure zero porosity and dimensional accuracy?
Does Neway AeroTech offer batch production of custom Monel R-405 threaded fittings?
