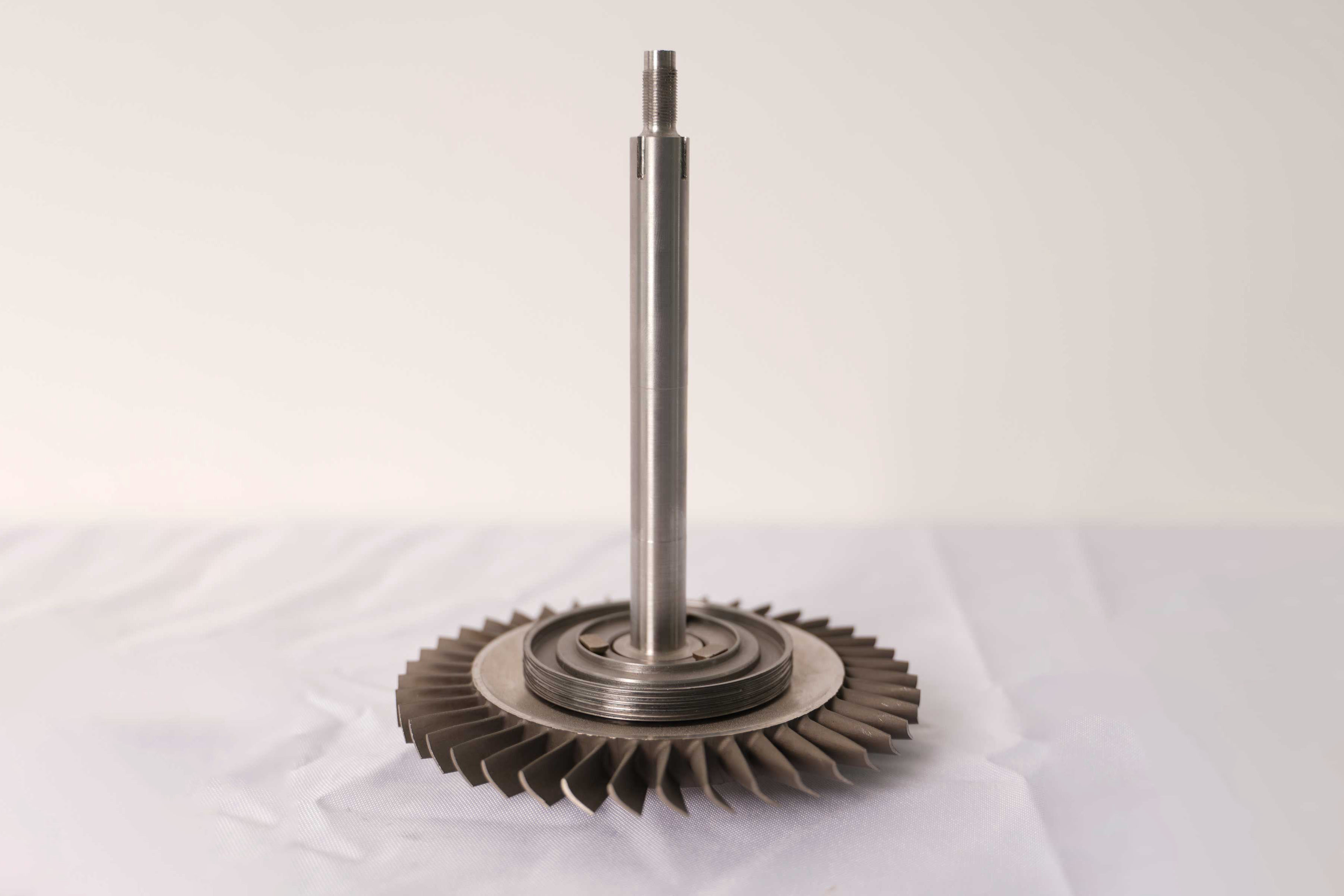

Monel alloy Precision Forging Compressor and Turbine Shafts
Introduction
Monel alloy precision forging is a specialized process used to manufacture high-strength, corrosion-resistant shafts for compressors and turbines operating in aggressive environments. At Neway AeroTech, we forge Monel K500 and Monel 400 into compressor and turbine shafts that deliver excellent mechanical properties, seawater corrosion resistance, and dimensional accuracy (±0.02 mm) for marine, chemical processing, and energy applications.
Precision forging optimizes the grain flow, enhances fatigue resistance, and reduces machining allowances—improving component life and performance in both rotating and static applications.
Core Technology of Monel Alloy Precision Forging
Alloy Selection and Preheating: Monel K500 and 400 billets are preheated to forging temperatures of 900–1100°C to achieve sufficient plasticity and minimize grain damage.
Closed-Die Forging: Forging under controlled pressure realigns grain flow along the shaft axis, improving tensile strength and torsional resistance under load.
Grain Structure Control: Forged shafts exhibit uniform grain size (ASTM 9–12) and enhanced directional strength, critical for shaft rotation stability.
Solution Annealing and Aging: Heat treatment is used to precipitate γ′ phase in Monel K500, improving yield and tensile strength.
Precision CNC Machining: Multi-axis CNC machining ensures final geometries, keyways, and shaft diameters meet ±0.02 mm tolerances.
Optional Surface Treatments: Shafts may be treated with nitriding, passivation, or protective coatings for enhanced wear or chemical resistance.
Material Characteristics of Forged Monel Shafts
Property | Monel K500 | Monel 400 |
|---|---|---|
Tensile Strength | 965–1100 MPa | 480–620 MPa |
Yield Strength | ≥690 MPa | ≥170 MPa |
Operating Temperature | Up to 480°C | Up to 480°C |
Corrosion Resistance | Outstanding in seawater, acids | Excellent in chlorides and salts |
Hardness (Aged K500) | Up to 35 HRC | ~22 HRC |
Non-Magnetic | Yes (K500 when aged) | Yes |
Machinability | Moderate | Good |
Case Study: Forged Monel Shafts for Offshore Compressor and Turbine Systems
Project Background
A marine energy company required forged Monel K500 shafts for offshore compressor and power turbines subjected to saltwater spray, brine exposure, and variable mechanical loading. Shaft performance was expected to exceed 20,000 operating hours with minimal maintenance.
Typical Shaft Applications
Compressor Shafts: Monel K500 used for drive shafts in gas compressors on offshore platforms, offering high corrosion and torque resistance.
Turbine Shafts: Monel 400 forged turbine shafts employed in seawater-cooled steam turbine systems for marine and coastal power installations.
Pump Shafts: Ideal for high-flow, high-pressure pumps handling aggressive chemical slurries and saltwater mixtures.
Motor and Coupling Shafts: Used in marine propulsion systems where non-magnetic properties and resistance to crevice corrosion are critical.
Forged Shaft Manufacturing Solution
Billet Selection: Vacuum-melted Monel K500 billets selected based on purity, chemical composition, and end-use application.
Hot Forging: Shafts forged at 1000°C under axial and radial compression to achieve directional strength and reduce internal inclusions.
Trimming and Straightening: Forgings trimmed and straightened to within 0.05 mm/mm runout before heat treatment.
Solution Annealing + Aging (K500): Heat treatment at 980°C and aging at 590°C to develop Ni₃(Al,Ti) precipitation and enhance hardness and strength.
Final Machining: Shaft ends, bearing journals, keyways, and threads machined to within ±0.02 mm tolerance on precision CNC lathes.
Surface Finishing: Shafts polished to Ra ≤1.6 µm for optimal bearing interaction and corrosion resistance.
NDT Inspection: Ultrasonic and X-ray testing confirm defect-free forging integrity.
Dimensional Verification: Critical features measured with Coordinate Measuring Machine (CMM) to validate geometric accuracy.
Manufacturing Challenges
Maintaining uniform properties across large-diameter, high-length shaft forgings
Controlling grain orientation for enhanced torsional fatigue performance
Machining work-hardened Monel alloys while preserving tolerance and surface finish
Preventing distortion during heat treatment and final straightening
Results and Verification
Strength Validation: Forged Monel K500 shafts achieved tensile strengths >1000 MPa, with hardness values up to 35 HRC after aging.
Corrosion Testing: Passed >1000-hour ASTM B117 salt spray and immersion tests without pitting or degradation.
Fatigue Life: Torsional fatigue tests exceeded 10⁶ cycles at design torque loads under simulated marine conditions.
Dimensional Accuracy: CMM verified all critical tolerances within ±0.02 mm across shaft length and features.
Surface Finish: Final finish Ra ≤1.6 µm consistently achieved across bearing seats and sealing diameters.
