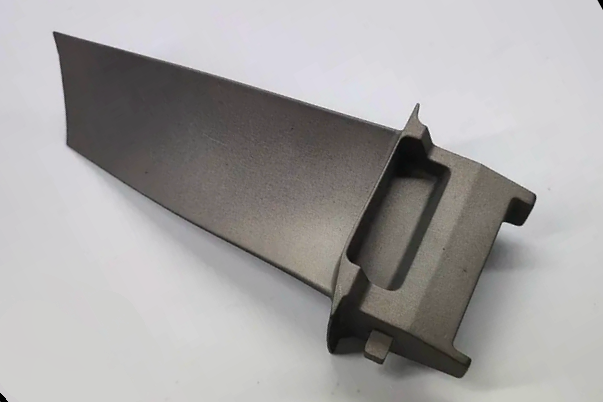

Superalloy CMSX-10 Turbine Blade Single Crystal Casting Supplier

Core Manufacturing Challenges for CMSX-10 Single Crystal Turbine Blades

Manufacturing CMSX-10 single crystal turbine blades involves significant technical challenges:

• Achieving defect-free <001> oriented single crystals to eliminate grain boundaries and enhance creep life completely.

• Maintaining ultra-tight solidification control (~2–4 mm/min withdrawal rate) to prevent defects such as freckles, stray grains, or low-angle boundaries.

• Ensuring precise dimensional tolerances (±0.05 mm) for airfoil and root sections critical for turbine performance.

• Managing residual stress during cooling and heat treatment to avoid internal cracking.

Single Crystal Casting Process for CMSX-10 Turbine Blades

Our advanced single crystal casting process includes:

1. Wax Pattern Creation: High-precision CNC-machined wax patterns replicating blade geometries.

2. Ceramic Shell Building: Application of multiple layers of ceramic coatings with controlled particle sizes for maximum thermal stability and strength.

3. Dewaxing and Shell Firing: Steam dewaxing (~150°C) followed by ceramic shell firing (~1000°C) for structural robustness.

4. Vacuum Melting and Pouring: CMSX-10 ingots melted under ultra-high vacuum (<0.01 Pa) to ensure exceptional chemical purity.

5. Seeded Single Crystal Growth: Controlled directional solidification with strict withdrawal rates and thermal gradients (~20–30°C/cm) to ensure <001> oriented single crystal growth.

6. Shell Removal and Heat Treatment: Post-casting ceramic removal, followed by high-temperature solution treatment (~1280°C) and aging cycles to optimize γ' phase morphology.

7. Final CNC Finishing: Achieving surface finishes Ra ≤1.6 µm and dimensional tolerances (±0.01 mm) essential for blade aerodynamic efficiency and assembly fit.

Comparison of Manufacturing Methods for CMSX-10 Turbine Blades

Manufacturing Method Selection Strategy

Selecting the right casting method depends on component function, performance requirements, and lifecycle costs:

• Single Crystal Casting: Mandatory for first-stage turbine blades operating at extreme temperatures (>1150°C) under high mechanical loading and thermal cycling. Single crystals offer up to 50–70% longer creep life than equiaxed blades.

• Directional Solidification: Suitable for intermediate or second-stage blades requiring high creep strength but lower cost.

• Equiaxed Casting: Applied to lower temperature blades where ultimate creep and fatigue resistance are not essential.

CMSX-10 Performance Matrix

Advantages of CMSX-10 Single Crystal Turbine Blades

CMSX-10 single crystal blades offer significant performance enhancements:

• Unmatched Creep Strength: Superior creep life even at stresses >400 MPa and temperatures above 1100°C.

• Outstanding Fatigue Resistance: Eliminating grain boundaries prevents fatigue crack initiation under severe cyclic thermal-mechanical loads.

• Excellent Oxidation and Corrosion Resistance: Enhances durability in aggressive hot-section environments.

• Extended Service Intervals: Longer operational life reduces maintenance costs and improves turbine efficiency.

Key Post-processing Techniques

Critical post-processing operations include:

• Hot Isostatic Pressing (HIP): Removes internal voids and improves density (>99.9%).

• High-Temperature Heat Treatment: Solution treatment (~1280°C) and multi-step aging (~850°C) to refine microstructure and optimize γ' distribution.

• Precision CNC Machining: Achieves high-accuracy airfoil and root geometries within ±0.01 mm.

• Thermal Barrier Coating (TBC): Applied to blade surfaces to improve thermal resistance and oxidation protection.

Testing Methods and Quality Assurance

Neway AeroTech maintains strict quality control at each production stage:

• Coordinate Measuring Machine (CMM): Dimensional inspection within ±0.005 mm.

• X-ray Non-destructive Testing: Detection of internal defects, stray grains, and porosity.

• Metallographic Microscopy: Evaluation of grain orientation and γ' morphology.

• Tensile and Creep Testing: Mechanical property validation under service-like conditions.

All processes are AS9100 aerospace quality certified.

Case Study: CMSX-10 Single Crystal Turbine Blades for Aerospace Engines

Neway AeroTech successfully delivered CMSX-10 single crystal turbine blades for a leading aerospace engine platform:

• Service Temperature: Sustained operation above 1150°C

• Dimensional Precision: ±0.05 mm across airfoil, platform, and root sections

• Mechanical Performance: 50% improvement in creep life over previous second-generation alloys

• Certification: Full AS9100 aerospace quality system compliance

FAQs

1. What are the advantages of CMSX-10 over earlier generation single crystal alloys?

2. How does Neway AeroTech ensure single crystal growth without stray grains?

3. What service temperatures can CMSX-10 single crystal turbine blades withstand?

4. How does HIP and heat treatment improve CMSX-10 blade properties?

5. What quality control certifications support Neway AeroTech's turbine blade production?
