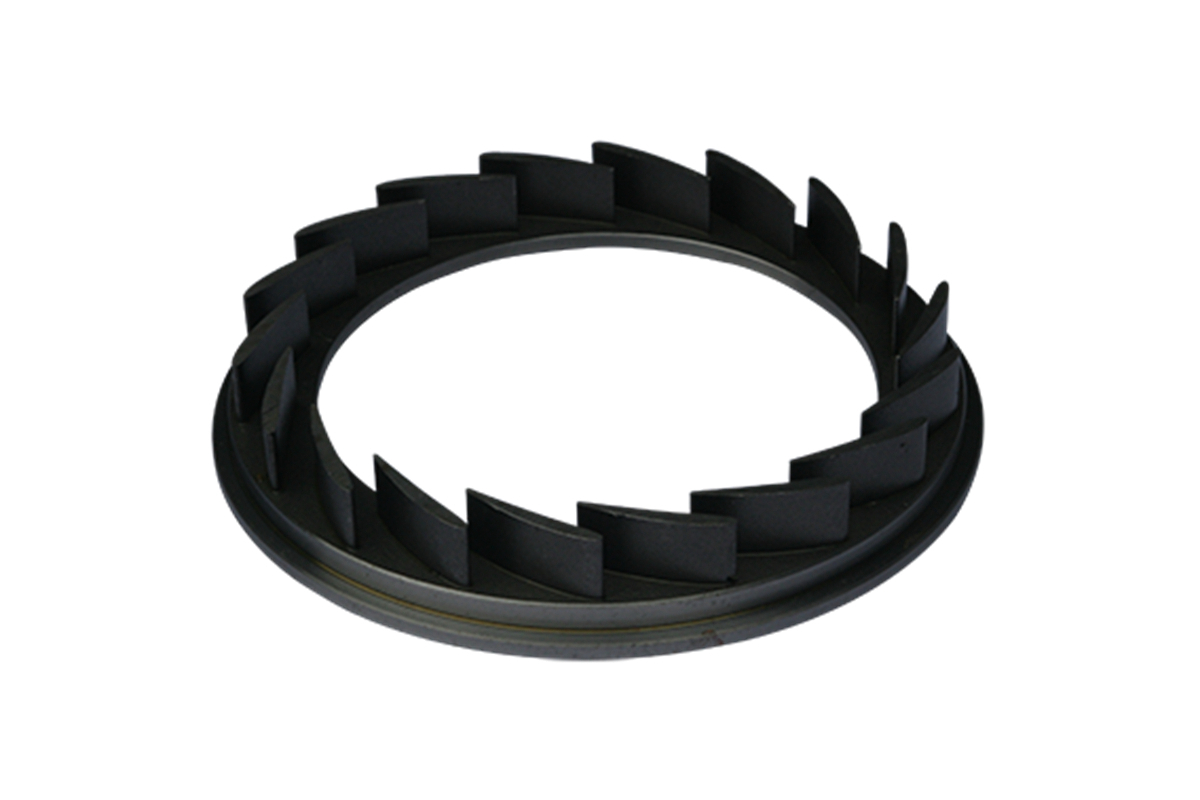

Power Generation High-Temperature Parts Custom Nozzle Rings Foundry
Introduction to High-Temperature Alloy Nozzle Rings
High-temperature alloys, such as Inconel, Hastelloy, Nimonic, and Rene, are critical materials for turbine nozzle rings in power generation systems due to their superior mechanical strength, oxidation resistance, and outstanding thermal stability. Neway AeroTech provides precision manufacturing of custom nozzle rings utilizing advanced techniques such as vacuum investment casting and directional solidification casting.
Our specialized foundry ensures components consistently meet or exceed rigorous power-generation industry standards, delivering reliable performance and exceptional durability under extreme operating conditions.
Key Manufacturing Challenges in High-Temperature Nozzle Rings
Producing nozzle rings from high-temperature alloys poses specific challenges:
Creep Resistance: Sustaining dimensional stability and structural integrity at temperatures up to 1200°C.
Corrosion Resistance: Maintaining reliability in highly oxidative combustion environments.
Precision of Internal Structures: Achieving tight tolerances (±0.15 mm) for complex internal cooling channels.
Material Machinability: Managing the alloys’ low thermal conductivity and rapid work-hardening properties.
Detailed Manufacturing Processes for Nozzle Rings
Vacuum Investment Casting
Precision wax patterns replicate complex nozzle ring designs.
Ceramic molds are built layer by layer; wax is removed at approximately 180°C.
Alloys cast under vacuum (<0.01 Pa) ensure optimal purity.
Controlled cooling rates (~40°C/hour) minimize internal stresses and preserve dimensional accuracy.
Directional Solidification Casting
Controlled solidification creates aligned grain structures for enhanced mechanical performance.
Thermal gradients are managed at 20–50°C/cm to ensure high-quality crystalline orientation.
Solidification is carefully controlled at approximately 25–35°C/hour, reducing porosity and internal defects.
Comparative Overview of Manufacturing Processes
Process | Dimensional Accuracy | Surface Finish | Efficiency | Complexity Capability |
|---|---|---|---|---|
Vacuum Investment Casting | ±0.15 mm | Ra 3.2–6.3 µm | Moderate | High |
Directional Solidification | ±0.20 mm | Ra 6.3–12.5 µm | Moderate | High |
CNC Machining | ±0.01 mm | Ra 0.8–3.2 µm | Moderate | Moderate |
SLM 3D Printing | ±0.05 mm | Ra 6.3–12.5 µm | High | Very High |
Manufacturing Process Selection Strategy for Nozzle Rings
Vacuum Investment Casting: Ideal for complex internal geometries with high dimensional accuracy (±0.15 mm), suitable for medium production volumes.
Directional Solidification: Recommended for parts requiring enhanced creep and fatigue strength via grain alignment, tolerance ±0.20 mm.
CNC Machining: Used for precise finishing operations demanding tight dimensional accuracy (±0.01 mm).
SLM 3D Printing: Preferred for rapid prototyping of intricate cooling channels with ±0.05 mm precision.
Material Performance Matrix for High-Temperature Nozzle Rings
Material | Tensile Strength (MPa) | Yield Strength (MPa) | Service Temp (°C) | Oxidation Resistance | Application |
|---|---|---|---|---|---|
1375 | 1100 | 700 | Superior | Turbine discs and nozzle rings | |
900 | 350 | 1200 | Outstanding | Nozzle segments | |
1160 | 815 | 920 | Exceptional | Turbine nozzle vanes | |
1300 | 850 | 950 | Excellent | High-temp turbine components | |
1185 | 925 | 980 | Exceptional | Advanced nozzle stages | |
1200 | 850 | 1100 | Outstanding | Single-crystal turbine blades |
Material Selection Strategy for Nozzle Rings
Inconel 718: Preferred for turbine discs and nozzle rings due to excellent tensile strength (1375 MPa) and stability at 700°C.
Hastelloy X: Selected for nozzle segments, offering superior oxidation resistance up to 1200°C with balanced strength.
Nimonic 90: Ideal for nozzle vanes, providing exceptional creep strength (1160 MPa) and resistance to oxidation at 920°C.
Rene 80: Recommended for critical turbine components needing excellent high-temp performance (1300 MPa) at 950°C.
Inconel 738: Optimal for advanced turbine stages, with exceptional yield strength (925 MPa) and operating temperature up to 980°C.
Rene N5: Suitable for single-crystal turbine blades due to outstanding creep resistance and durability at 1100°C.
Essential Post-processing Technologies for Nozzle Rings
Hot Isostatic Pressing (HIP): Eliminates porosity, enhancing fatigue life under conditions ~1200°C and ~150 MPa pressure.
Thermal Barrier Coating (TBC): Lowers surface temperature (~200°C), significantly improving nozzle ring lifespan.
Electrical Discharge Machining (EDM): Creates precision internal cooling structures with high accuracy (±0.005 mm).
Heat Treatment: Optimizes alloy microstructures, increasing component strength and stability at elevated temperatures.
Industry Case Study: Custom High-Temperature Nozzle Rings for Power Turbines
Neway AeroTech manufactured Inconel 738 turbine nozzle rings via vacuum investment casting and HIP for a major power-generation client. We delivered superior dimensional accuracy (±0.15 mm), exceptional creep and oxidation resistance, and reliable service performance at temperatures reaching 980°C.
Our industry-leading expertise, precision manufacturing processes, and strict quality control procedures ensure optimal performance and longevity in demanding power-generation applications.
FAQs on Custom Nozzle Ring Manufacturing
What is the standard lead time for custom high-temperature alloy nozzle rings?
Can your foundry accommodate prototyping and small-batch orders?
What industry certifications and quality assurance standards do your products meet?
Which post-processing treatments do you recommend for optimal nozzle ring longevity?
Do you provide technical assistance for alloy selection and nozzle ring design optimization?
