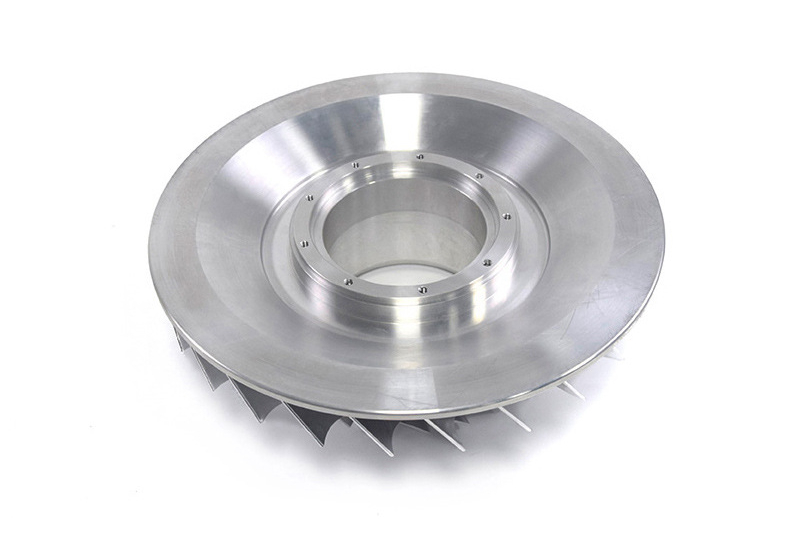

Nimonic Alloy Turbo Booster Parts Precision Machined for Maximum Performance

Core Manufacturing Challenges for Nimonic Turbo Booster Components

CNC machining Nimonic alloys such as Nimonic 90 and Nimonic 80A presents several key challenges:

• High strength and work-hardening behavior leading to rapid tool wear and increased cutting forces.

• Achieving extremely tight tolerances (±0.005 mm) is required for rotor balance, sealing surfaces, and aerodynamic efficiency.

• Managing high machining temperatures and minimizing thermal distortion to preserve part integrity.

• Achieving superior surface finishes (Ra ≤0.8 µm) eis ssential for airflow optimization and mechanical performance.

Precision CNC Machining Process for Nimonic Turbo Booster Parts

Our CNC machining process for Nimonic turbo components includes:

1. Material Assessment: Pre-machining analysis to determine microstructure, hardness, and optimal cutting strategies.

2. Tool Selection: Utilization of carbide or ceramic inserts designed for machining superalloys.

3. Multi-Axis CNC Machining: 5-axis simultaneous machining for complex geometry and precision feature control.

4. Adaptive Machining Parameters: To minimize heat input and tool wear, Fine-tuned speeds (15–40 m/min) and feeds (0.02–0.08 mm/rev).

5. Surface Finishing: Final passes using reduced depth of cut and speed control to achieve Ra ≤0.8 µm.

6. Quality Verification: CMM inspection and surface roughness testing to ensure all critical dimensions and surface specifications are met.

Comparison of Manufacturing Methods for Nimonic Turbo Booster Components

Manufacturing Method Selection Strategy

Selecting the appropriate manufacturing method depends on part complexity, performance demands, and cost considerations:

• Precision CNC Machining: Ideal for turbo booster rotors, turbine shafts, and housing components where complex geometry, superior fatigue resistance, and tight tolerances (±0.005 mm) are critical.

• Wire EDM Machining: Suited for incredibly intricate internal features where maximum precision is required, but with slower production speeds and higher cost.

• Conventional Machining: Best for simpler designs or secondary operations where moderate tolerances (±0.01 mm) are acceptable.

Nimonic Alloy Performance Matrix

Alloy Selection Strategy for Turbo Booster Components

Selecting the right Nimonic alloy ensures optimal durability and system performance:

• Nimonic 90: Best for turbocharger rotors and wheels requiring maximum fatigue resistance and high-temperature stability up to 950°C.

• Nimonic 80A: Preferred for high-speed compressor wheels and manifolds needing strong thermal resistance at temperatures up to 850°C.

• Nimonic 263: Chosen for exhaust systems and high-load turbo assemblies requiring a balance of strength and oxidation resistance.

• Nimonic 75: Suitable for industrial turbo parts where moderate strength and good thermal stability are sufficient.

• Nimonic PE16: Used in advanced turbo booster assemblies for aerospace and performance automotive applications, requiring consistent mechanical stability.

Key Post-processing Techniques

Critical post-processing steps for maximum part performance:

• Precision Surface Finishing: Achieves Ra ≤0.8 µm for improved flow dynamics and component efficiency.

• Heat Treatment: Solution treatment and aging to enhance tensile strength and creep resistance.

• Protective Coatings: Thermal barrier and anti-corrosion coatings for extended turbocharger life.

• Hot Isostatic Pressing (HIP): Improves density and fatigue strength by eliminating internal voids.

Testing Methods and Quality Assurance

Neway AeroTech ensures part quality through rigorous testing:

• Coordinate Measuring Machine (CMM): Dimensional verification with ±0.005 mm precision.

• X-ray Non-destructive Testing: Inspection of internal structure integrity.

• Metallographic Microscopy: Microstructural analysis.

• Tensile Testing: Validation of mechanical strength and fatigue resistance.

Our operations are fully AS9100 aerospace quality certified.

Case Study: CNC Machined Nimonic 90 Turbo Rotors

Neway AeroTech produced precision CNC-machined Nimonic 90 turbo rotors for high-performance racing applications:

• Service Conditions: Continuous operation up to 950°C

• Dimensional Precision: ±0.005 mm consistently achieved

• Surface Finish: Ra ≤0.6 µm after final machining

• Certification: Fully compliant with AS9100 aerospace quality standards

FAQs

1. Why are Nimonic alloys preferred for turbocharger and booster applications?

2. What precision tolerances can you achieve for CNC machined Nimonic turbo parts?

3. How do you manage machining challenges associated with high-strength Nimonic alloys?

4. Which Nimonic grades are recommended for turbo rotors and compressor wheels?

5. What quality assurance methods guarantee the reliability of your Nimonic turbo components?
