How HIP Enhances Creep and Fatigue Resistance in Alloys
HIP can support creep or fatigue consistency when sealed internal porosity is a limiting defect population, but the two properties require different qualification plans. Creep is time-dependent deformation under sustained high-temperature stress. Fatigue is damage under cyclic loading, often strongly influenced by surface condition, local stress concentration, environment, and defect location.
The RFQ should define exact alloy, crystal structure, casting route, HIP and heat-treatment sequence, specimen source and orientation, test conditions, acceptance basis, and component inspection. A general statement that HIP “enhances creep and fatigue” is not enough to release a casting or predict service life.
Separate Creep, Stress Rupture, and Fatigue Requirements
Creep testing may measure strain over time at a specified temperature and stress. Stress-rupture testing may focus on time to rupture and elongation under defined conditions. Fatigue testing may be low-cycle, high-cycle, thermo-mechanical, or another buyer-defined method. Each test uses different loading, specimens, data, and failure criteria.

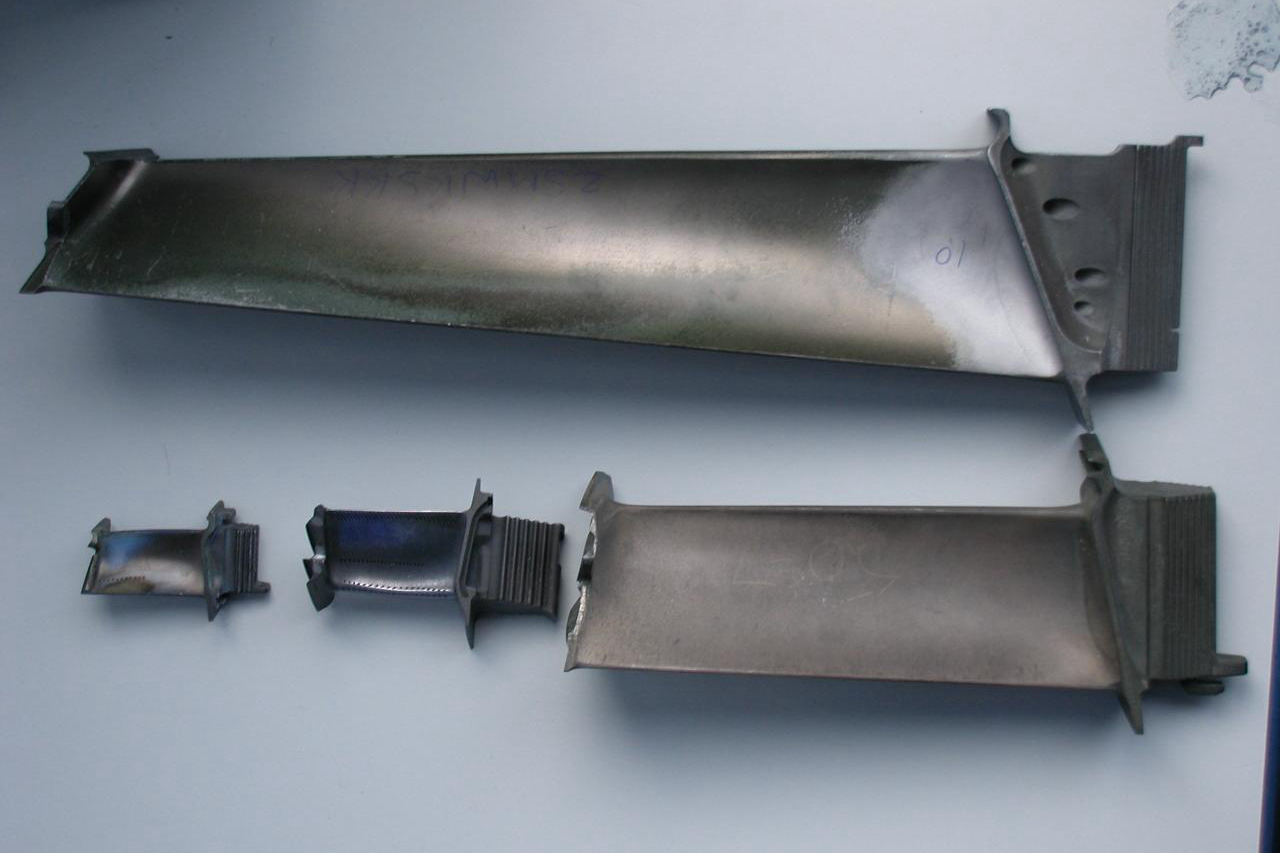

State which property controls the component and why. A hot-section blade may require creep and thermal-fatigue evidence; a rotating disk feature may emphasize low-cycle fatigue; a static housing may need different material and component checks. The supplier should not substitute a convenient room-temperature tensile test for a required time- or cycle-dependent test.
Keep service-life prediction with the responsible design authority. Manufacturing tests show conformance under controlled conditions; actual life also depends on stress spectrum, temperature gradients, cooling, environment, assembly, and maintenance.
Identify How Porosity Interacts with the Failure Mode
Pores reduce local load-bearing area and can concentrate stress. Their effect depends on size, shape, location, orientation, proximity to the surface, and surrounding microstructure. A small internal pore in a low-stress volume may not have the same significance as a surface-near irregular pore at a fillet or cooling hole.
HIP can reduce eligible sealed internal pores. It does not remove inclusions, oxide films, ceramic residue, surface-connected cracks, blocked passages, stray grains, freckles, recrystallization, or low-angle boundaries. Those conditions require casting-process control and their own inspection and disposition.
Characterize the relevant pore population before HIP using approved radiography, CT, ultrasonic testing, metallography, or density evidence. After HIP, repeat suitable methods. A property comparison is more meaningful when the study also documents what changed in the defect population.
Build a Creep and Stress-Rupture Test Plan
Define test temperature, applied stress, specimen geometry, orientation, extensometry, atmosphere, duration or termination condition, and reported results. For a precipitation-strengthened alloy, the HIP and follow-up heat-treatment condition must match the production route. A specimen processed separately can give a misleading comparison.
Specimen orientation is critical for directionally solidified and single-crystal castings. Relate the test axis to growth or crystal orientation and record any orientation limits required by the material specification. HIP does not correct a casting that fails crystal-orientation acceptance.
Coupon section and source also matter. State whether samples are cast-on, separately cast, removed from a prolongation, or machined from a sacrificial component. Keep them with the same HIP and heat-treatment loads when required and document differences in section response.
Build a Fatigue Test Plan Around Surface and Cyclic Loading
Define load or strain control, waveform, stress ratio, frequency, temperature, environment, cycle limit, runout handling, and failure definition. Low-cycle and high-cycle fatigue are not interchangeable. Thermo-mechanical fatigue adds controlled phase relationships between temperature and strain.
Specimen machining and surface finish can dominate fatigue results. Control extraction orientation, gauge geometry, tool marks, polishing, EDM recast removal, coating, and edge condition. A HIP-treated specimen with a damaged surface may fail for a reason unrelated to internal porosity.
Report all specimens, including runouts and approved retests, with fracture origin where examined. Do not publish only the highest value or convert a small comparative set into a guaranteed fatigue-life claim.
Control Grain Structure and Heat Treatment
Equiaxed, directionally solidified, and single-crystal castings have different grain-boundary and orientation behavior. Creep and fatigue results should be interpreted within the correct casting structure. HIP changes suitable pores and adds thermal exposure; it does not create the intended grain structure.
Follow-up heat treatment establishes the approved precipitate and phase condition. Record HIP cycle, solution or stabilization steps, aging, cooling, and cumulative exposure. A vessel chart alone is not a complete material-condition record.
Metallography can evaluate precipitates, carbides, porosity, grain features, and fracture-adjacent structure as required. Sample location, orientation, preparation, and acceptance basis should be defined before destructive work.
Keep Component Inspection beside Coupon Testing
Coupons do not represent every component volume. Use NDE to inspect critical casting zones and final surfaces, dimensions to verify wall and datum relationships, and passage checks for internal cooling or flow features. A passing creep specimen does not accept a blocked passage or surface crack.
Material testing and analysis should link every result to heat, lot, HIP load, heat-treatment load, specimen ID, and test laboratory. Component records should use the same identity chain through machining and coating.
Fractography can locate fatigue or rupture origins and distinguish a pore, inclusion, surface mark, grain feature, or test artifact. When used, preserve fracture surfaces, identify specimen halves, and document cleaning before analysis.
Compare HIP and Non-HIP Data Without Bias
Use material from the same heat and controlled casting route when comparing HIP and non-HIP conditions. Match section, sample location, orientation, heat treatment, specimen machining, surface finish, and laboratory. If one variable differs, state the limitation.
Report sample count, individual data, averages and scatter where applicable, runouts, and excluded results with justification. HIP may reduce scatter associated with eligible porosity even when the mean property changes little. The buyer should define whether mean, minimum, distribution, or another metric controls acceptance.
Avoid percentage-improvement claims from unmatched historical data. A different alloy heat, casting geometry, specimen size, or test temperature can explain the difference. Comparative evidence should answer the buyer’s actual component question.
Use Fracture Origin to Test the HIP Hypothesis
A failed specimen provides more information when the fracture origin is preserved and located. Examine whether initiation occurred at an internal pore, surface-connected pore, inclusion, oxide film, machining mark, EDM layer, coating edge, grain feature, or test-fixture artifact. The finding determines whether HIP plausibly addressed the controlling condition. A failure starting at a surface scratch should not be reported as proof that internal densification was ineffective.
For creep or rupture specimens, record gauge deformation, necking or crack location, oxidation, and microstructure near and away from the fracture as required. For fatigue specimens, document initiation site, propagation features, and final overload region. Correlate the origin with pre-HIP and post-HIP imaging when registration is available. Keep interpretation within the method and evidence; do not assign a mechanism from appearance alone.
Component geometry can contain more severe local conditions than a smooth specimen. Cooling-hole edges, blade roots, fillets, seal slots, and repaired zones may combine stress concentration and surface processing. If these areas control the buyer’s risk, add representative feature specimens or component-level validation approved by the design authority instead of relying only on standard bars.
Set Production Sampling after Qualification
After first-article qualification, define which evidence applies to every HIP load, every heat, every part, or a scheduled sample. Vessel and furnace records, identification, dimensions, and required NDE may have different frequencies from destructive creep or fatigue tests. The governing material and purchase requirements should define the minimum plan.
Trend mechanical data, pore indications, fracture origins, heat-treatment records, and dimensional movement by heat and lot. A shift in scatter or origin location can reveal process drift before the acceptance minimum is missed. Trend review supports process control but does not replace individual part disposition.
Retain specimens, fracture halves, scan data, and polished mounts for the agreed period. Label physical samples independently of file names and record storage condition. When a later production or field issue occurs, retained evidence allows comparison with the accepted route without claiming that one historical specimen represents all service conditions.
Use First Article to Qualify the Complete Route
The first article should connect foundry controls, pre-HIP pore evidence, HIP record, heat treatment, orientation, coupon map, specimen machining, creep or fatigue data, NDE, dimensions, final surface condition, and any coating. Review the chain before repeat production.
Define change-notification triggers for alloy source, casting layout, HIP supplier and cycle, load fixture, heat treatment, coupon design, specimen orientation, machining source, NDE technique, test laboratory, and coating route. Later data should remain comparable with the accepted process.
When a test fails, investigate identity, porosity, grain structure, thermal route, specimen preparation, test setup, and fracture origin. Do not repeat HIP, heat treatment, or testing until an approved disposition defines what the retest represents.
Creep and Fatigue HIP RFQ Checklist
Send the drawing and model, alloy and crystal structure, heat and lot identity, relevant failure mode, pre-HIP NDE, approved HIP and heat-treatment route, coupon source and orientation, creep or fatigue test conditions, acceptance criteria, component NDE and dimensions, surface and coating condition, documentation, and first-article hold points.
Request separate pricing for HIP, heat treatment, NDE, coupons, specimen machining, creep or rupture tests, fatigue tests, metallography, fractography, dimensions, reports, and sample retention. This creates a property qualification scope without promising service life.
