Hastelloy X Equiaxed Crystal Casting Sterilization Equipment Foundry
Introduction
Hastelloy X is a nickel-based superalloy known for outstanding oxidation resistance and mechanical stability at temperatures up to 1200°C. At our foundry, we utilize precision Equiaxed Crystal Casting techniques, achieving grain sizes between 0.5–3 mm and dimensional accuracy within ±0.1 mm, ensuring optimal performance of critical sterilization equipment components.
Leveraging advanced casting technology, our Hastelloy X components consistently meet stringent industry requirements for reliability, durability, and corrosion resistance, particularly in pharmaceutical and food processing environments.
Core Technology: Equiaxed Crystal Casting of Hastelloy X
Our equiaxed crystal casting process utilizes precisely controlled solidification rates (approximately 50–150°C/min) to produce uniform isotropic microstructures, grain sizes between 0.5–3 mm, and minimal structural defects (<1% porosity). Accurate mold preheating (950–1050°C) and carefully regulated pouring temperatures (around 1420°C) enable consistent dimensional tolerances of ±0.1 mm, ensuring superior quality and mechanical performance of Hastelloy X sterilization components.
Material Characteristics of Hastelloy X
Hastelloy X alloy is specifically designed for high-temperature, oxidation, and corrosion resistance, ideal for sterilization equipment applications. Key properties include:
Property | Value |
|---|---|
Melting Range | 1260–1355°C |
Density | 8.22 g/cm³ |
Tensile Strength (at 870°C) | 380 MPa |
Yield Strength (at 870°C) | 200 MPa |
Elongation | ≥30% |
Thermal Expansion Coefficient | 13.0 µm/m°C |
Oxidation Resistance | Excellent (up to 1200°C) |
These exceptional material properties ensure Hastelloy X's performance in high-temperature sterilization environments, resistant to aggressive oxidizing conditions.

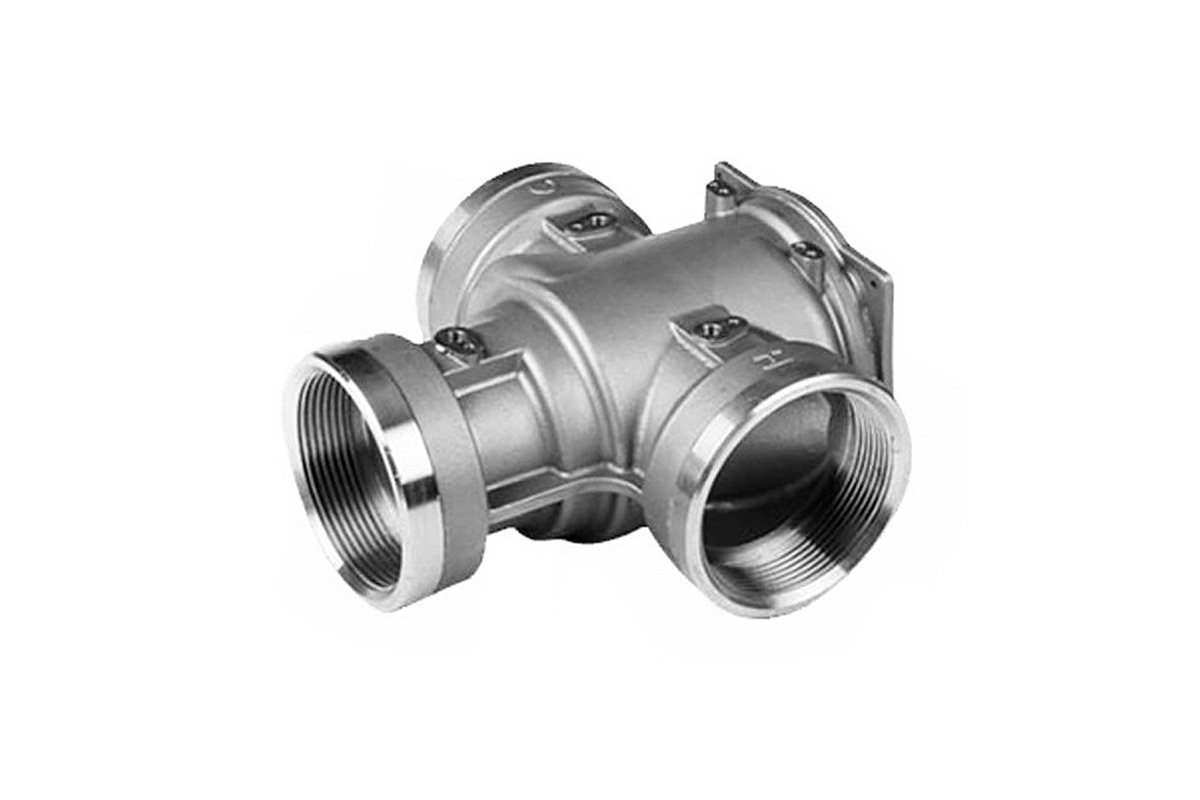

Case Study: Hastelloy X Sterilization Equipment Components
Project Background
A leading sterilization equipment manufacturer required durable, oxidation-resistant components for continuous operation at temperatures exceeding 900°C. Our foundry utilized equiaxed crystal casting methods with Hastelloy X alloy to meet rigorous ASTM B572 and ISO 9001 quality standards, ensuring reliability and extended component life under harsh sterilization conditions.
Typical Sterilization Equipment Models and Applications
Steam Sterilizer Chambers: Hastelloy X components withstand cyclic steam exposure at high temperatures (~950°C), ensuring reliable sterilization performance.
Dry Heat Sterilization Modules: Parts providing resistance to oxidation and thermal fatigue at continuous operating temperatures up to 1100°C, ensuring equipment longevity.
Ethylene Oxide (EtO) Sterilization Vessels: Components resisting chemical corrosion from ethylene oxide gas and maintaining dimensional integrity during repeated thermal cycles.
Rapid Sterilization Systems: Precision-cast Hastelloy X parts for high-speed sterilization applications, optimizing thermal and mechanical stability.
These components significantly enhance the operational efficiency and durability of sterilization equipment across pharmaceutical and medical applications.
Sterilization Component Manufacturing Solutions
Casting Process Components are cast using vacuum-assisted equiaxed crystal solidification. Controlled pouring at approximately 1420°C and mold preheating at ~1000°C ensures uniform grain structure and dimensional precision within ±0.1 mm, minimizing internal defects and achieving less than 1% porosity.
Post-processing After casting, components undergo Hot Isostatic Pressing (HIP), at approximately 1180°C and pressures around 100 MPa, effectively removing residual porosity (<1%) and enhancing density and mechanical properties.
Surface Treatment Components are finished using passivation treatments and specialized thermal barrier coatings (TBC) composed of yttria-stabilized zirconia, applied via plasma spray, effectively insulating surfaces and reducing oxidation rates by up to 90% at operating temperatures around 1100°C.
Testing and Inspection Rigorous testing procedures include digital X-ray radiographic inspection, ultrasonic inspection per ASTM E114 standards, metallographic analysis, and elevated-temperature tensile testing ensuring adherence to stringent pharmaceutical equipment quality standards.
Core Manufacturing Challenges of Sterilization Components
Manufacturing Hastelloy X sterilization components presented several challenges:
Ensuring precise dimensional accuracy within ±0.1 mm.
Maintaining consistent grain size distribution (0.5–3 mm) for optimal mechanical integrity.
Minimizing oxidation and porosity (<1%) during high-temperature vacuum casting.
Results and Verification
Completed Hastelloy X sterilization components consistently demonstrated:
Less than 1% porosity verified through X-ray and ultrasonic inspections.
Superior oxidation resistance validated by extended thermal exposure tests at 1100°C, exceeding ASTM oxidation resistance benchmarks.
Verified mechanical strengths with tensile testing exceeding 380 MPa at 870°C, fully compliant with pharmaceutical equipment industry standards.
FAQs
What makes equiaxed crystal casting suitable for sterilization equipment components?
How does Hastelloy X perform under prolonged high-temperature oxidation conditions?
What specific testing methods guarantee the quality of Hastelloy X sterilization components?
Can Hastelloy X components be customized to specific sterilization equipment requirements?
What surface treatments enhance oxidation resistance for Hastelloy X sterilization parts?
