Introduction to Single Crystal Superalloy Turbine Blades

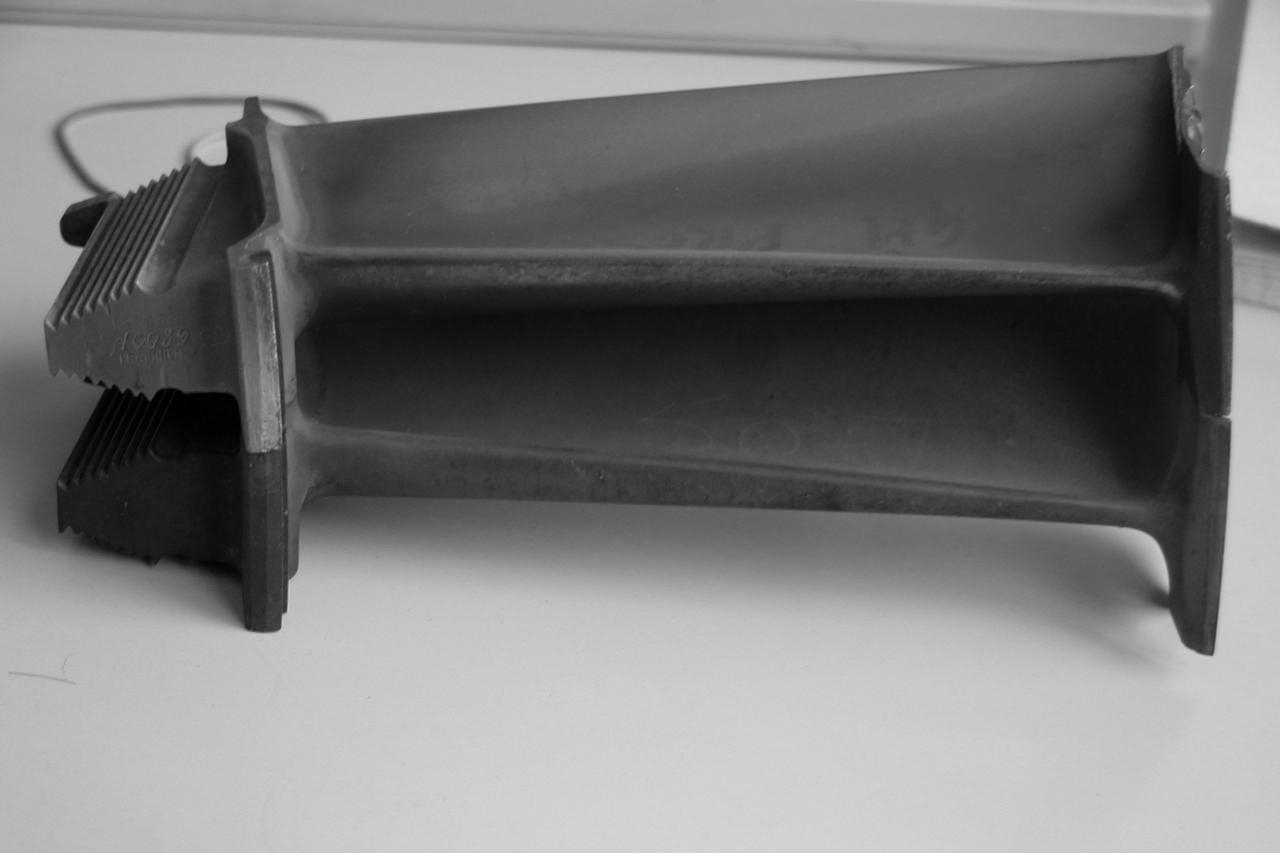

Single crystal turbine blades are the most advanced components in aerospace and energy turbine technology, offering unmatched creep resistance, thermal fatigue strength, and oxidation durability at extreme operating temperatures. Neway AeroTech is a specialized single crystal casting supplier of superalloy turbine blades, providing precision-cast parts in high-performance alloys such as CMSX-4, Rene N5, and PWA 1484.
With deep expertise in directional solidification and vacuum investment casting, we produce high-integrity, single grain structure blades for aerospace, marine, and power turbine applications.
Key Challenges in Single Crystal Turbine Blade Casting
Casting single crystal blades requires the most advanced precision casting methods due to the following challenges:
Grain Control: Maintaining a single grain structure through carefully controlled thermal gradients and withdrawal rates.
High-Temperature Strength: Ensuring blade integrity at sustained temperatures up to 1150–1200°C.
Dimensional Precision: Achieving ±0.10 mm accuracy for complex airfoil geometries and root platforms.
Defect Elimination: Preventing stray grains, porosity, and solidification shrinkage under vacuum casting conditions.
Single Crystal Vacuum Investment Casting Process
Wax Pattern and Mold Preparation
High-accuracy wax patterns (±0.05 mm) were created to replicate complex airfoil geometries.
Ceramic mold built via multi-stage slurry dipping and sintering (~8–12 mm shell thickness).
Grain Selector Assembly
Spiral grain selectors or seeding rods are integrated to guide controlled single-grain nucleation during solidification.
Vacuum Melting and Directional Solidification
Nickel-based superalloy melted under high vacuum (<0.1 Pa).
Mold slowly withdrawn through a carefully controlled temperature gradient (3–6°C/mm) to promote unidirectional solidification.
Cooling rate and withdrawal speed were precisely managed to avoid stray grains and create a single-crystal structure.
Post-Casting Processes
Shell removal and surface cleaning.
Hot Isostatic Pressing (HIP) eliminates microporosity and improves fatigue performance.
Heat treatment optimizes microstructure and phase distribution.
CNC machining finalizes critical tolerances (±0.01 mm).
Comparison of Turbine Blade Casting Methods
Method | Grain Structure | Max Temp Capability | Mechanical Properties | Application Level |
|---|---|---|---|---|
Equiaxed Casting | Polycrystalline | ~950°C | Good | Industrial turbines |
Directionally Solidified (DS) | Columnar grains | ~1050°C | Very Good | Marine / Power turbines |
Single Crystal (SC) | One grain | 1150–1200°C | Exceptional | Aerospace HPT & IGT |
Single Crystal Superalloy Material Matrix
Alloy | Tensile Strength | Creep Resistance | Max Temp | Oxidation Resistance | Common Applications |
|---|---|---|---|---|---|
1300 MPa | Excellent | 1150°C | Superior | Jet engine HPT blades, IGT vanes | |
1250 MPa | Excellent | 1100°C | Excellent | Turbine blades in aerospace engines | |
1350 MPa | Outstanding | 1200°C | Superior | Military & commercial aviation engines | |
1400 MPa | Outstanding | 1175°C | Superior | 5th-gen fighter engine turbines | |
1350 MPa | Excellent | 1150°C | Very Good | High-efficiency turbine blade platforms |
Alloy Selection Strategy
CMSX-4: Industry standard for SC blades with a proven balance of creep strength and castability.
Rene N5: Best for aerospace blades needing excellent oxidation and thermal fatigue resistance.
PWA 1484: Preferred in military jet engines for maximum operating temperature and long-term durability.
CMSX-10: Chosen for next-generation engines requiring superior creep and oxidation performance.
RR3000: Suitable for high-efficiency turbine blades used in both aviation and industrial power systems.
Key Post-processing Technologies
Hot Isostatic Pressing (HIP): Removes internal porosity and boosts fatigue life.
Heat Treatment: Enhances phase uniformity and mechanical properties.
CNC Machining: Finalizes blade root, tip, and shroud geometry.
NDT (X-ray, SEM, EBSD): Validates grain structure and casting quality.
Industry Case Study: CMSX-4 Blade Casting for Aerospace Engine
Neway AeroTech produced CMSX-4 single crystal turbine blades for a commercial jet engine OEM. The blades were vacuum cast with directional withdrawal, followed by HIP, heat treatment, and CNC machining. Final inspection using EBSD confirmed a flawless single grain. Mechanical testing verified creep resistance beyond 1150°C for over 1000 hours, meeting the engine’s high-pressure turbine design requirements.
