Hastelloy Sanitary Valve Bodies Casting Foundry

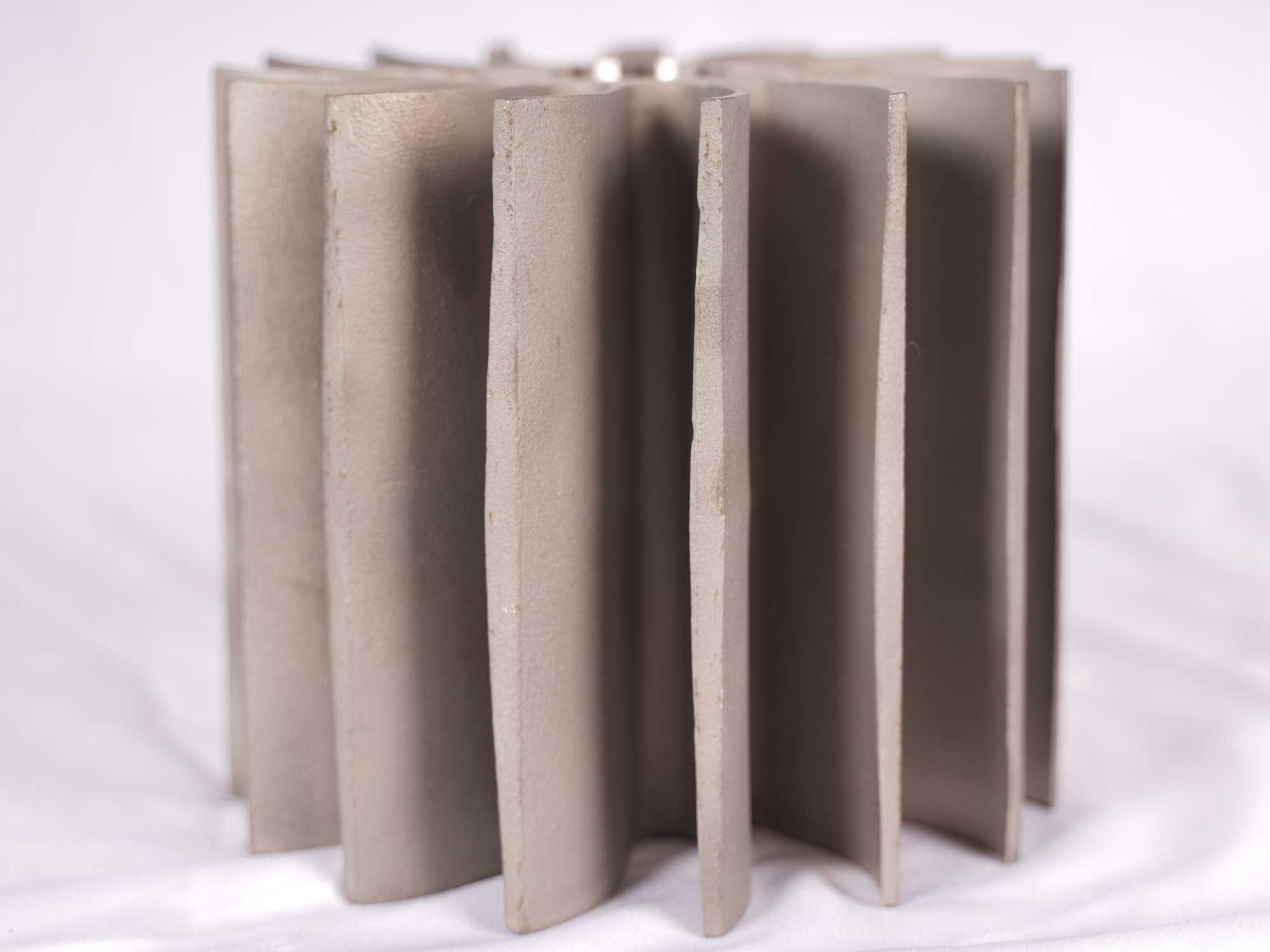

Introduction to Hastelloy Sanitary Valve Body Casting
Hastelloy alloys are renowned for exceptional corrosion resistance, thermal stability, and reliability, particularly in demanding pharmaceutical, chemical processing, and food production environments. Neway AeroTech specializes in precision vacuum investment casting of Hastelloy sanitary valve bodies, particularly alloys such as Hastelloy C-276, Hastelloy B-2, and Hastelloy C-22. Our advanced casting techniques ensure high dimensional precision, superior corrosion resistance, and compliance with stringent hygienic standards.
Our dedication to precision manufacturing and quality control makes us a trusted foundry partner for Hastelloy valve bodies.
Core Challenges in Hastelloy Valve Body Casting
Casting Hastelloy valve bodies involves several technical challenges:
Corrosion Resistance: Ensuring uniform alloy composition and defect-free microstructure for superior chemical resistance.
Dimensional Accuracy: Achieving tight dimensional tolerances (±0.1 mm) critical for reliable valve sealing performance.
Surface Quality: Producing sanitary-grade finishes (Ra 0.8–3.2 µm) to meet industry hygienic standards.
Complex Geometries: Managing precise casting of intricate valve designs and internal passageways.
Detailed Hastelloy Valve Body Casting Process
Wax Pattern Production
Accurate wax patterns precisely replicate component dimensions within ±0.05 mm accuracy.
Ceramic Shell Mold Formation
Durable ceramic molds constructed layer by layer (8–12 mm thickness) capable of withstanding casting temperatures (~1400°C).
Vacuum Melting and Precision Casting
Vacuum induction melting under controlled atmosphere (<0.1 Pa) prevents contamination, ensuring metallurgical purity.
Controlled solidification produces uniform grain structures, minimizing internal defects.
Finishing and Machining
Precision CNC machining refines component dimensions to exacting tolerances (±0.1 mm).
Electropolishing achieves hygienic surface finishes (Ra 0.8–3.2 µm) for sanitary applications.
Rigorous quality inspection and testing ensure compliance with FDA and pharmaceutical industry standards.
Comparison of Manufacturing Methods for Valve Bodies
Manufacturing Method | Dimensional Accuracy | Surface Finish | Corrosion Resistance | Efficiency |
|---|---|---|---|---|
Vacuum Investment Casting | ±0.10 mm | Ra 0.8–3.2 µm | Excellent | High |
CNC Machining | ±0.005 mm | Ra 0.4–0.8 µm | Good | Moderate |
Precision Forging | ±0.2 mm | Ra 6.3–12.5 µm | Very Good | High |
Additive Manufacturing (SLM) | ±0.10 mm | Ra 6.3–12.5 µm | Excellent | Moderate |
Manufacturing Process Selection Strategy
Vacuum Investment Casting: Ideal for producing complex valve body geometries requiring superior corrosion resistance and precise tolerances.
CNC Machining: Optimal for achieving extremely precise internal geometries and smooth sealing surfaces.
Precision Forging: Suitable for robust valve bodies needing high mechanical strength and moderate surface finish requirements.
Selective Laser Melting (SLM): Beneficial for rapid prototyping or production of valve bodies with complex internal channels.
Hastelloy Alloy Performance Matrix
Alloy | Tensile Strength | Yield Strength | Corrosion Resistance | Max Temp | Typical Sanitary Applications |
|---|---|---|---|---|---|
750 MPa | 350 MPa | Excellent (Acids, Chloride) | 1038°C | Chemical/pharma valve bodies | |
690 MPa | 310 MPa | Superior (Corrosive Media) | 1050°C | Highly corrosive valve bodies | |
760 MPa | 350 MPa | Superior (Hydrochloric Acid) | 1000°C | Acid handling valves | |
655 MPa | 276 MPa | Very Good (Mixed Acids) | 980°C | General chemical valves | |
760 MPa | 345 MPa | Excellent (High Temp Oxidation) | 1093°C | High-temp sanitary valves | |
790 MPa | 385 MPa | Excellent (Oxidation) | 1204°C | Extreme-temperature valves |
Hastelloy Material Selection Strategy
Hastelloy C-276: Superior general-purpose alloy for valves handling highly aggressive chemical and pharmaceutical fluids.
Hastelloy C-22: Recommended for valve bodies exposed to severe corrosive conditions, including oxidizing acids and chlorides.
Hastelloy B-2: Ideal for sanitary valve bodies handling concentrated hydrochloric acid environments.
Hastelloy G-30: Excellent choice for valves used in mixed-acid environments in pharmaceutical and chemical plants.
Hastelloy N: Best for valve components operating continuously under high-temperature oxidizing conditions.
Hastelloy X: Preferred alloy for extreme-temperature applications demanding superior oxidation and corrosion resistance.
Key Post-processing Technologies
Precision CNC Machining: Ensures critical dimensional accuracy and sealing surface precision.
Electropolishing and Passivation: Enhances surface smoothness, corrosion resistance, and cleanliness.
Hot Isostatic Pressing (HIP): Eliminates internal porosity, ensuring structural integrity.
Non-destructive Testing (NDT): Verifies internal quality and external surface compliance with stringent standards.
Industry Case Study: Pharmaceutical Sanitary Valve Production
Neway AeroTech recently delivered custom Hastelloy C-276 valve bodies to a leading pharmaceutical client. Using precision vacuum investment casting, we achieved dimensional accuracy (±0.10 mm), outstanding corrosion resistance, and hygienic surface finishes (Ra 0.8 µm), meeting rigorous FDA regulatory standards. Our advanced casting capabilities significantly improved valve performance and operational reliability for critical pharmaceutical processes.
Our expertise in Hastelloy alloy casting reinforces our industry reputation for precision and reliability.
