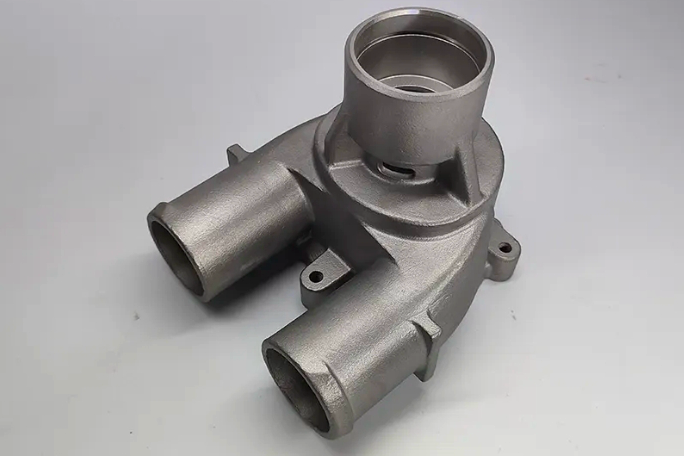

Hastelloy B Valve Parts Vacuum Investment Casting Manufacturer
Introduction
Hastelloy B is a nickel-molybdenum alloy specifically engineered for exceptional corrosion resistance against strong reducing agents such as hydrochloric acid and other aggressive chemicals. At Neway AeroTech, we manufacture precision Hastelloy B valve parts through advanced vacuum investment casting, ensuring superior metallurgical integrity, excellent dimensional accuracy, and outstanding corrosion resistance for critical chemical process applications.
By leveraging vacuum investment casting technology, Neway AeroTech produces Hastelloy B valve components with consistent quality, minimal porosity, and the performance reliability demanded by the chemical processing, pharmaceutical, and energy sectors.
Key Manufacturing Challenges for Hastelloy B Valve Parts
Precise chemical control to maintain ma olybdenum-rich composition for corrosion resistance.
Minimization of gas entrapment and inclusions via controlled vacuum conditions.
Maintaining dimensional tolerances within ±0.03 mm for valve seating and sealing surfaces.
Achieving fine surface finishes (Ra ≤1.6 µm) for fluid control performance.
Vacuum Investment Casting Process for Hastelloy B Valve Components
The casting process for Hastelloy B valve parts includes:
Wax Pattern Production: Injection-molded high-precision wax replicas of valve geometries.
Shell Formation: Ceramic slurry coatings and fine refractory sands applied layer by layer.
Dewaxing: Steam autoclave (~150°C) removes wax without cracking the ceramic mold.
Vacuum Melting and Pouring: Hastelloy B alloy melted and poured under vacuum (<10⁻³ Pa) to prevent oxidation and contamination.
Controlled Solidification: Slow cooling (~4–7°C/min) for uniform microstructure and reduced residual stresses.
Shell Removal and Final Finishing: Shell break-off, surface cleaning, CNC machining, and rigorous non-destructive inspection.
Comparative Analysis of Valve Component Manufacturing Techniques
Process | Surface Finish | Dimensional Accuracy | Corrosion Resistance | Production Complexity | Cost Level |
|---|---|---|---|---|---|
Vacuum Investment Casting | Excellent (Ra ≤1.6 µm) | High (±0.03 mm) | Superior | High (complex shapes) | Moderate |
Sand Casting | Moderate (Ra ~12 µm) | Moderate (±0.5 mm) | Good | Low | Low |
Forging + CNC Machining | Good (Ra ~3 µm) | Very High (±0.01 mm) | Excellent | Low (simple shapes) | High |
CNC Machining from Billet | Excellent (Ra ≤0.8 µm) | Very High (±0.01 mm) | Good | Medium | High |
Valve Manufacturing Process Selection Strategy
Vacuum Investment Casting is optimal for producing complex Hastelloy B valve parts needing high corrosion resistance and precision.
Sand Casting applies to larger, simpler valve bodies with moderate performance requirements.
Forging + CNC Machining suits critical high-pressure valves demanding flawless grain structures.
CNC Machining delivers highest precision but at increased material and production costs.
Hastelloy B Material Performance Matrix
Material | Tensile Strength (MPa) | Max Temp (°C) | Corrosion Resistance | Primary Applications |
|---|---|---|---|---|
760 | 650 | Outstanding resistance to strong reducing agents | Chemical processing valves, heat exchangers | |
750 | 1038 | Exceptional resistance to aggressive chemicals | Reactors, valve components | |
690 | 650 | Superior against oxidizing and reducing media | Chemical valve housings | |
550 | 480 | Excellent in marine environments | Marine valves, pumps | |
930 | 980 | Superior seawater and oxidation resistance | Offshore oil valves | |
890 | 800 | Exceptional wear and corrosion resistance | Valve seats and trims |
Rationale for Hastelloy B Material Selection
Hastelloy B: Chosen for valve parts exposed to hydrochloric acid, sulfuric acid, and strong reducing media.
Hastelloy C-276: Preferred where resistance to mixed chemical environments is critical.
Hastelloy C-22: Used for applications needing broad resistance to oxidizing and reducing agents.
Monel 400: Selected for marine fluid valve components needing basic corrosion resistance.
Inconel 625: Ideal for offshore and high-temperature corrosion environments.
Stellite 6: Applied where abrasion and corrosion coexist, such as valve seats and trims.
Essential Post-processing Techniques
Hot Isostatic Pressing (HIP): Removes internal porosity at ~1160°C and 100 MPa, enhancing fatigue and sealing performance.
Precision CNC Machining: Achieves critical tolerances ±0.01 mm for valve assemblies.
Surface Treatment: Improves corrosion protection and surface smoothness.
Material Testing & Analysis: Ensures compliance with chemical, mechanical, and metallurgical specifications.
Industry Applications and Case Study
Neway AeroTech’s Hastelloy B valve components are widely used in chemical plants, refineries, and pharmaceutical industries. In a hydrochloric acid handling project, Hastelloy B valves demonstrated service lives exceeding 4 years under continuous aggressive media exposure, outperforming standard stainless steel valves by over 50%, significantly reducing system downtime and replacement costs.
