Benefits of Thermal Barrier Coating (TBC) on Superalloy Castings

A thermal barrier coating benefits a superalloy casting only as part of an engineered system: accepted substrate, compatible bond coat, controlled thermally grown oxide, ceramic top coat, defined zones and edges, protected cooling features, and verified application. A ceramic layer alone does not prove lower metal temperature, higher efficiency, or longer component life.

For this RFQ, buyers should define the alloy and casting structure, component duty, gas-side temperature and cycling, cooling arrangement, coating zones, excluded surfaces, substrate condition, bond-coat system, top-coat material, application method, thickness or other controlled characteristics, inspection, qualification coupons, and acceptance authority.

Translate the Desired Benefit into a Coating Requirement

Thermal insulation, oxidation protection, hot-corrosion resistance, erosion tolerance, thermal-cycling response, and surface restoration are different objectives. The ceramic top coat primarily changes heat transfer, while the bond coat and oxide scale are central to substrate protection and adhesion. No single TBC architecture is best for every duty.

Provide operating temperature range, dwell, starts and stops, thermal gradient, gas or process chemistry, particle loading, cooling flow, and inspection interval. A continuously operated vane, cyclic blade, combustor liner, shroud, or stationary process component can need different structure, thickness, porosity, strain tolerance, and edge design.

Keep the design claim separate from manufacturing evidence. The coating supplier can demonstrate material, process, thickness, microstructure, adhesion-related or thermal-cycling evidence required by the specification. Actual metal-temperature reduction and service interval require component design, cooling, stress, and operating data.

Specify the Complete TBC Architecture

State whether the system is customer-defined, supplier-proposed for approval, or qualified through a specific program. Material names such as YSZ are not enough; powder or source controls, phase condition, bond-coat chemistry, and process route influence the delivered structure.

When multiple layers or graded regions are required, define interfaces and total build. Record every strip, repair, and reapplication because repeated surface removal and diffusion exposure can change the substrate and dimensional envelope.

Accept the Substrate Before Coating Begins

The substrate should meet alloy, heat-treatment, grain-structure, geometry, wall, surface, NDE, cleanliness, and repair requirements before coating hides or alters the surface. Porosity open to the surface, cracks, inclusions, weld defects, oxidation, embedded media, or out-of-tolerance geometry require disposition first.

Investment casting cleanup, gate blending, HIP, heat treatment, machining, EDM, and weld repair can each affect coating preparation. The coating source needs the actual delivered condition and a record of operations that restrict later heat or stripping.

Protect minimum wall and profile during preparation. Abrasive blasting or grinding can round edges, change thin airfoils, enlarge cooling openings, or embed contamination. Define preparation media, pressure or energy, angle, coverage, cleanliness, and excluded zones.

Choose APS or EB-PVD from Geometry and Duty

Air plasma spray can build a lamellar ceramic structure and is widely applicable to suitable component geometries. EB-PVD can produce a columnar structure with different strain accommodation and surface characteristics. Method choice should follow geometry, thermal cycling, erosion, coating architecture, thickness, access, and qualification basis.

APS control includes powder lot and condition, feed, plasma parameters, spray distance, angle, part motion, substrate temperature, masking, and pass strategy. Shadowing and angle can change thickness and porosity around platforms, fillets, holes, and complex contours.

EB-PVD control includes ingot or source material, vacuum, substrate preparation, preheat, rotation, line of sight, deposition rate, temperature, and chamber loading. Complex geometry can create coverage differences. Neither method should be selected from a generic performance ranking.

Control Bond Coat and Oxide-Scale Development

The bond coat must be compatible with the substrate, top coat, operating environment, and thermal route. MCrAlY and diffusion aluminide families create different chemistry, roughness, diffusion behavior, and oxidation response. State the exact approved system and application.

Surface preparation and bond-coat finish affect top-coat attachment. Excessive roughness, contamination, local thin zones, overspray, and edge buildup can create stress or coverage variation. Define bond-coat inspection before the ceramic layer is applied.

Thermal exposure creates the oxide scale between bond coat and ceramic. Its composition, continuity, growth, and rumpling influence durability. Qualification should reproduce relevant heat treatment and exposure; a room-temperature adhesion test alone cannot represent cyclic oxide growth.

Control Top-Coat Thickness, Porosity, and Structure

Thickness should be assigned by zone, not assumed uniform on complex geometry. Excess build can change fit, edge stress, passage area, and local thermal gradient; insufficient build can miss the intended thermal function. Define measurement locations, method, sampling, and permissible variation.

Porosity, cracks, segmentation, splat boundaries, or columns can be intentional parts of the structure, depending on process and specification. Acceptance should use approved references and methods rather than treat every void as a defect or every dense region as superior.

Powder chemistry, particle size, phase, handling, feed stability, substrate temperature, deposition parameters, and cooling influence the top coat. Maintain lot traceability and record critical settings for the component load.

Protect Cooling Holes, Seals, and Mating Surfaces

Cooling holes and internal passages can be restricted by masking error, overspray, rebounding particles, edge buildup, or preparation debris. Define protected openings, permitted coating entry, reopening method if approved, cleanliness, and post-coat flow, borescope, CT, or dimensional checks.

Seal faces, bearing fits, threads, datums, assembly interfaces, and weld-preparation zones generally need explicit masking or controlled post-coat machining. Masking must survive preparation and deposition without contaminating the coating or damaging the substrate.

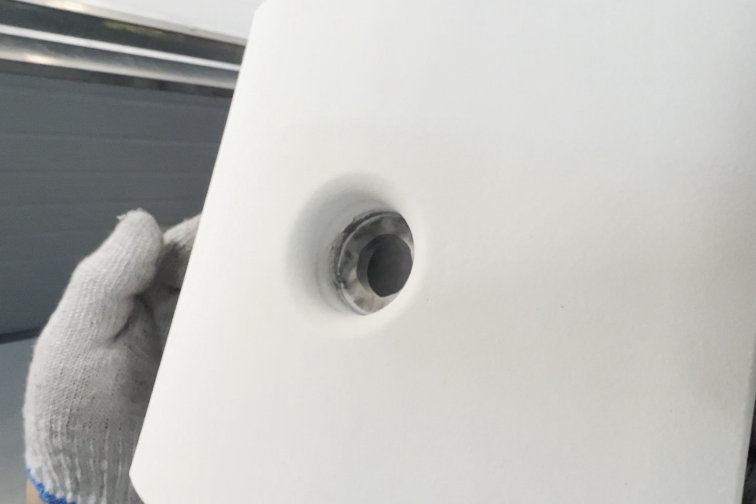

Coating around small holes and sharp edges needs a termination design. Abrupt thickness changes and poorly supported edges can initiate local cracking or spallation. Use drawings or zone maps with controlled transitions rather than shop interpretation.

Design Edge Terminations and Blend Zones

Every coated zone has a boundary. Place terminations away from severe stress, rubbing, seal contact, high erosion, and inaccessible inspection where possible. Define taper or step, maximum overspray, blend length, and permissible exposed bond coat or substrate.

Platforms, fillets, trailing edges, shroud hooks, bolt holes, and thin wall transitions can combine thermal and geometric stress. Coating layout should reflect local expansion and component flexure. A uniform rectangular mask on a complex casting rarely represents the functional boundary.

Inspect the edge after masking removal and final handling. Damage at a termination can propagate even when the broad coated area is acceptable. Record repairs and local recoating limits.

Sequence Heat Treatment, Machining, and Coating Deliberately

Heat treatment, HIP, weld repair, brazing, bond-coat diffusion, and coating deposition contribute to total thermal history. Review alloy and grain-structure limits before approving the sequence. A later cycle can alter substrate or coating condition.

Complete critical machining before coating when practical, while preserving controlled post-coat operations for masks, interfaces, or hole restoration. Cutting near coating edges can chip or delaminate the layer and expose an uninspected substrate.

Define cleaning, storage, and maximum time between preparation, bond coat, and top coat. Moisture, oil, handling, or oxidation can change interface condition. Use protected packaging at each outside-source handoff.

Inspect the Layer System at the Right Stage

Visual inspection can identify coverage, cracks, chips, contamination, color or appearance anomalies, masking errors, and edge damage. Thickness methods, weight change, surface profile, coupon sections, microscopy, or other specified techniques address different layer characteristics.

Metallographic sections can evaluate bond coat, oxide scale, top-coat thickness, porosity, phase or structure, interfaces, and local defects at the cut location. The coupon must use representative substrate, preparation, orientation, thermal history, and deposition position. A convenient flat coupon may not represent a shadowed fillet or airfoil edge.

Use material testing and analysis where adhesion-related, thermal-cycling, erosion, phase, chemistry, or microstructure evidence is required. State specimen type, test conditions, failure interpretation, and acceptance.

Qualify Representative Geometry and Thermal Cycling

The first article should include representative thick and thin zones, line-of-sight challenges, holes, edges, masks, and component orientation. Review substrate acceptance, preparation, bond coat, top coat, dimensions, passages, coupons, test results, and records together.

Thermal-cycling qualification should define temperatures, dwell, heating and cooling, atmosphere, specimen geometry, substrate and coating system, cycle count or endpoint, and failure criteria. Test results apply within the represented system and conditions; they do not establish an unconditional field interval.

Freeze or control substrate alloy and condition, repair route, preparation, coating materials, process source, equipment, key parameters, component loading, masking, thermal cycles, inspection, and coupons. Define changes that trigger notification or requalification.

Plan Strip and Recoat Boundaries Before Service

If refurbishment is expected, define allowable coating removal method, substrate loss, minimum wall, protected geometry, oxidation or depletion limits, repair zones, maximum thermal or strip cycles, and requalification. Strip effectiveness and substrate condition need inspection before recoating.

A used coating can show cracking, spallation, deposits, erosion, oxidation, and local overheating. These observations support condition assessment but do not by themselves identify the root cause. Correlate coating damage with substrate, cooling, operating history, and geometry.

For non-OEM work, establish configuration, design authority, sample condition, data rights, intended application, and acceptance. A used part is not automatically the nominal coating definition.

Send a Coating-System RFQ, Not a One-Line TBC Note

Provide the controlled drawing and model, exact substrate alloy and grain structure, service temperature and cycling, environment, cooling features, coating zone map, excluded surfaces, preparation, bond coat, top coat, application method, thickness and structure requirements, edges, masks, passages, prior thermal and repair history, inspection, coupons, tests, quantities, first article, records, and change control.

Ask suppliers to separate substrate review, fixtures, masks, preparation, bond coat, diffusion or heat treatment, top coat, coupon manufacture, destructive sections, thermal or other tests, passage checks, repairs, documentation, and recurring cost. Require assumptions and inaccessible zones.

The useful benefits of TBC come from a controlled layer system matched to the casting and duty. A credible quote explains how each layer is produced and verified, where the coating starts and stops, and which performance conclusions remain with the design authority.
