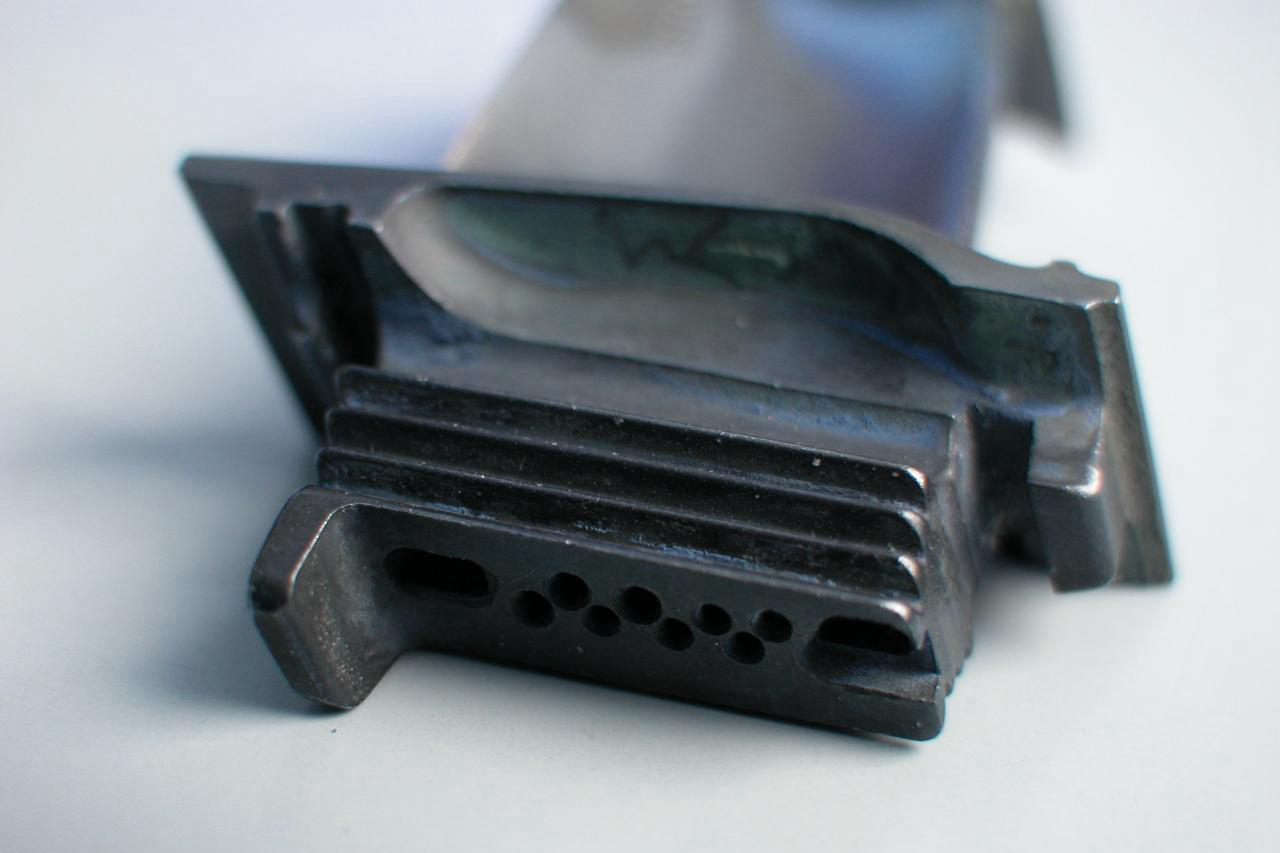

Top Benefits of Superalloy Welding for High-Temperature Parts

The benefit of welding a high-temperature superalloy part is not the weld itself. The benefit is a manufacturable joint or approved repair that retains the required geometry, material condition, and inspection evidence after thermal exposure. That result depends on base-alloy weldability, filler compatibility, dilution, restraint, heat input, post-weld treatment, and the actual service mechanism.

For this RFQ, buyers should define joint function, base and filler alloys, casting or wrought condition, grain structure, operating temperature and cycle, load direction, atmosphere, coating, prior service exposure, repair limits, required properties, and acceptance methods. Without those inputs, a supplier cannot responsibly turn “high-temperature welding” into a production route.

Identify the High-Temperature Damage Mechanism

A joint exposed to steady high temperature may be governed by creep or stress rupture. A joint exposed to frequent starts and stops may be governed by thermal-mechanical fatigue. Vibration can add high-cycle fatigue, while hot gas, combustion products, process media, or salts can introduce oxidation, sulfidation, carburization, or corrosion. Each mechanism changes the joint and test priorities.

Map temperature and stress across the weld, heat-affected zone, and nearby parent material. A nominal system temperature may not represent a local hot spot, cooling discontinuity, thick-to-thin transition, or constrained attachment. Provide dwell, ramp, shutdown, pressure, vibration, and environmental data at the level available to the design authority.

Keep the claim boundary clear. A sound weld can remove one manufacturing obstacle, but it cannot correct an unsuitable alloy, inadequate section, excessive operating temperature, poor cooling, or a stress concentration outside the repair area. Qualification evidence should address the joint contribution rather than promise component life.

Screen Base-Alloy Weldability and Prior Condition

Gamma-prime-strengthened nickel alloys, solid-solution nickel alloys, and cobalt alloys do not share one welding response. Chemistry, hardener content, grain structure, carbide distribution, section thickness, solution or aged condition, casting segregation, and prior thermal exposure influence solidification cracking, liquation cracking, strain-age cracking, and heat-affected-zone ductility.

State the exact grade and governing material specification. “Inconel,” “Hastelloy,” “Rene,” or “superalloy” is too broad for filler and thermal-route selection. For cast parts, include equiaxed, directionally solidified, or single-crystal structure and the permitted weld locations; local welding can disrupt the intended grain and precipitate condition.

For used parts, inspect coating residue, oxide, depletion, contamination, previous repairs, crack branching, wall loss, and distortion. Surface cleaning may reveal only part of the damage. Unknown service or heat-treatment history should be treated as an engineering uncertainty, not assumed equivalent to new material.

Choose Filler by Dilution and Service Compatibility

Filler selection should be tied to the approved procedure and joint purpose. A wire that deposits without visible cracking is not automatically suitable for high-temperature load, oxidation, or subsequent heat treatment. Identify filler classification, supplier, lot, storage, cleaning, and traceability.

Dilution changes weld-metal chemistry across the fusion zone. Joint preparation, bead placement, layer count, penetration, and repair volume influence that result. Where chemistry or microstructure is critical, define qualification sections and locations rather than infer the deposited condition from filler certification alone.

Place the Joint Where Thermal Gradients Can Be Managed

Joint location influences restraint, heat flow, stress concentration, coating transition, and inspection access. Avoid severe section changes, tight fillets, thin cooling walls, seal edges, and inaccessible hot spots unless the design and qualification specifically address them. A low-stress location on a drawing may still experience a strong thermal gradient.

Define groove, root, land, gap, mismatch, penetration, backing or purge, tack sequence, and assembly datum. Thin-to-thick joints need a heat-input strategy that achieves fusion without overheating the thin member. Circumferential joints and attached bosses need a sequence that manages shrinkage and ovality.

Provide enough access for torch or beam path, filler delivery, shielding, cleaning, visual inspection, NDE, and final blending. A joint that cannot be inspected at the required stage should be redesigned or qualified with a different evidence plan.

Select a Welding Process by Heat-Input Footprint

Superalloy welding may use GTAW/TIG, laser, electron beam, resistance, or other approved processes depending on alloy, thickness, access, penetration, atmosphere, production volume, and procedure basis. MIG or GMAW can offer deposition advantages in some situations but should not be selected for a critical high-temperature joint solely on speed.

GTAW gives direct control of filler and arc but remains sensitive to operator access, shielding, and cumulative heat. Focused-beam processes can narrow the heat-affected zone and provide deep penetration, yet fit-up, focus, vacuum or shielding environment, keyhole stability, and internal inspection become important. Every process trades one set of controls for another.

Set parameter windows through qualification. Current, voltage, travel speed, energy, pulse, focus, wire feed, shielding flow, preheat, interpass temperature, bead sequence, and heat input should be controlled at the level required by the joint. Production records must show the procedure revision and actual route.

Prevent Cracking Through Preparation and Thermal Control

Clean joint surfaces and filler to remove oil, oxide, coating, sulfur-bearing residue, embedded abrasive, marker, and moisture. The cleaning method should not introduce halides, metallic contamination, or geometry damage. Maintain protection between preparation and welding.

Control restraint and thermal gradient with fixture design, tack pattern, bead sequence, preheat where approved, and interpass rules. Excessive restraint raises local stress, while poor alignment creates mismatch and variable penetration. The fixture should hold assembly relationships without forcing distorted parts into an apparently acceptable condition.

If excavation is required, remove the complete unacceptable indication and inspect the root before filling. Record depth and remaining wall. Repeatedly welding over a recurring crack without root-cause evaluation can expand the heat-affected region and exceed the approved repair boundary.

Integrate PWHT with the Alloy’s Full Thermal History

Post-weld heat treatment may reduce selected residual stresses, restore a specified precipitation condition, or support a qualified cracking-control route. It is not universal. Some alloys are sensitive during heating or aging, and some components have prior cycles, coatings, or dimensional constraints that limit additional exposure.

Document every preceding and following thermal operation: casting heat treatment, HIP, solution, aging, stress relief, brazing, coating diffusion, stripping, and prior repair. Review cumulative time and temperature against the alloy and component definition. A cycle borrowed from wrought material may not represent a cast section or repaired service part.

Specify furnace atmosphere or vacuum, cleanliness, loading, sensor method, ramp, soak, cooling, fixture, and deviation disposition. Inspect geometry and weld condition after the cycle; the chart does not replace NDE or dimensional evidence.

Restore Machined and Coated Interfaces After Welding

Weld shrinkage and heat can move datums, flanges, bores, seal faces, thin walls, and passage alignment. Leave feature-specific stock where final correction is approved, then re-establish datums after thermal processing. Finish machining should not cut below parent minimum wall or expose an uninspected fusion boundary.

Blend transitions without removing required contour. On an airfoil, vane, seal, tube, or pressure boundary, the final profile and wall can govern acceptance. Use CMM, scanning, templates, wall measurement, flow, or leak checks as applicable.

If the part uses a protective coating, define stripping limits, substrate inspection, masking, preparation, restoration, thickness, transition, cooling-hole protection, and final verification. Do not weld through contamination or apply coating over an unaccepted repair.

Inspect the Fusion Zone, HAZ, Surface, and Geometry

Visual inspection addresses preparation, fit-up, bead shape, undercut, overlap, arc strikes, cleanliness, and final blend. FPI detects selected surface-breaking indications after suitable cleaning. Radiography, CT, or ultrasonic methods may address internal conditions depending on geometry, alloy, thickness, and access.

The heat-affected zone needs attention even when the bead surface looks sound. Liquation or strain-age cracks can occur adjacent to the fusion line or after heat treatment. Define inspection timing after welding, PWHT, machining, and coating operations that can expose or obscure an indication.

Dimensional inspection should compare the free-state part with the approved datum structure. Record mismatch, shrinkage, runout, flatness, profile, and passage condition where relevant. Keep original results, any approved disposition, rework, and final reinspection in the part record.

Qualify the Joint with Relevant High-Temperature Evidence

Qualification should represent base alloy, filler, material condition, thickness range, joint design, process, heat input, position, restraint, PWHT, machining, and inspection. A flat coupon can support procedure development but may not represent a thin curved wall, thick attachment, constrained repair, or service-aged casting.

Use material testing and analysis when required to evaluate weld and HAZ chemistry, macrostructure, microstructure, hardness, tensile, bend, fatigue, creep, stress rupture, oxidation, or corrosion. State specimen location, orientation, temperature, environment, and acceptance.

A room-temperature tensile test does not establish creep or thermal-fatigue performance. Select evidence from the governing requirement and failure mechanism. Keep raw data and specimen maps so results are not detached from the actual joint configuration.

Set a Strict Boundary for High-Temperature Repair

Repair instructions should define allowed part numbers, zones, defect types, excavation size, remaining wall, filler, heat input, PWHT, maximum repair cycles, final contour, NDE, and approval authority. Prohibited zones should be visible on the repair map.

For MRO or non-OEM work, establish data rights, configuration control, used-sample condition, reverse-engineering limits, and design responsibility. A worn or oxidized sample is evidence of service, not final design geometry. Do not infer a release basis from physical resemblance.

Stop the route when damage exceeds the approved envelope, the base material condition is uncertain, cracks branch beyond excavation, wall is below minimum, or required evidence cannot be obtained. Welding availability is not a reason to continue an unqualified repair.

Prepare a High-Temperature Welding RFQ

Send the controlled drawing and model, joint or repair map, exact base and filler requirements, material structure and condition, service temperature and cycle, load and environment, joint design, fit-up, process restrictions, shielding, heat-input controls, fixtures, PWHT, machining and coating restoration, NDE, material tests, quantities, qualification scope, records, and change control.

Request separate lines for procedure development, representative coupons, fixtures, preparation, welding, PWHT, machining, coating, NDE, destructive testing, documentation, and recurring production. Require the supplier to state assumptions, inaccessible areas, and prohibited repairs.

The strongest benefit is a controlled joint that the responsible engineering authority can evaluate from real evidence. That outcome depends on the high-temperature boundary defined in the RFQ, not on broad claims about welding strength or lifespan.
