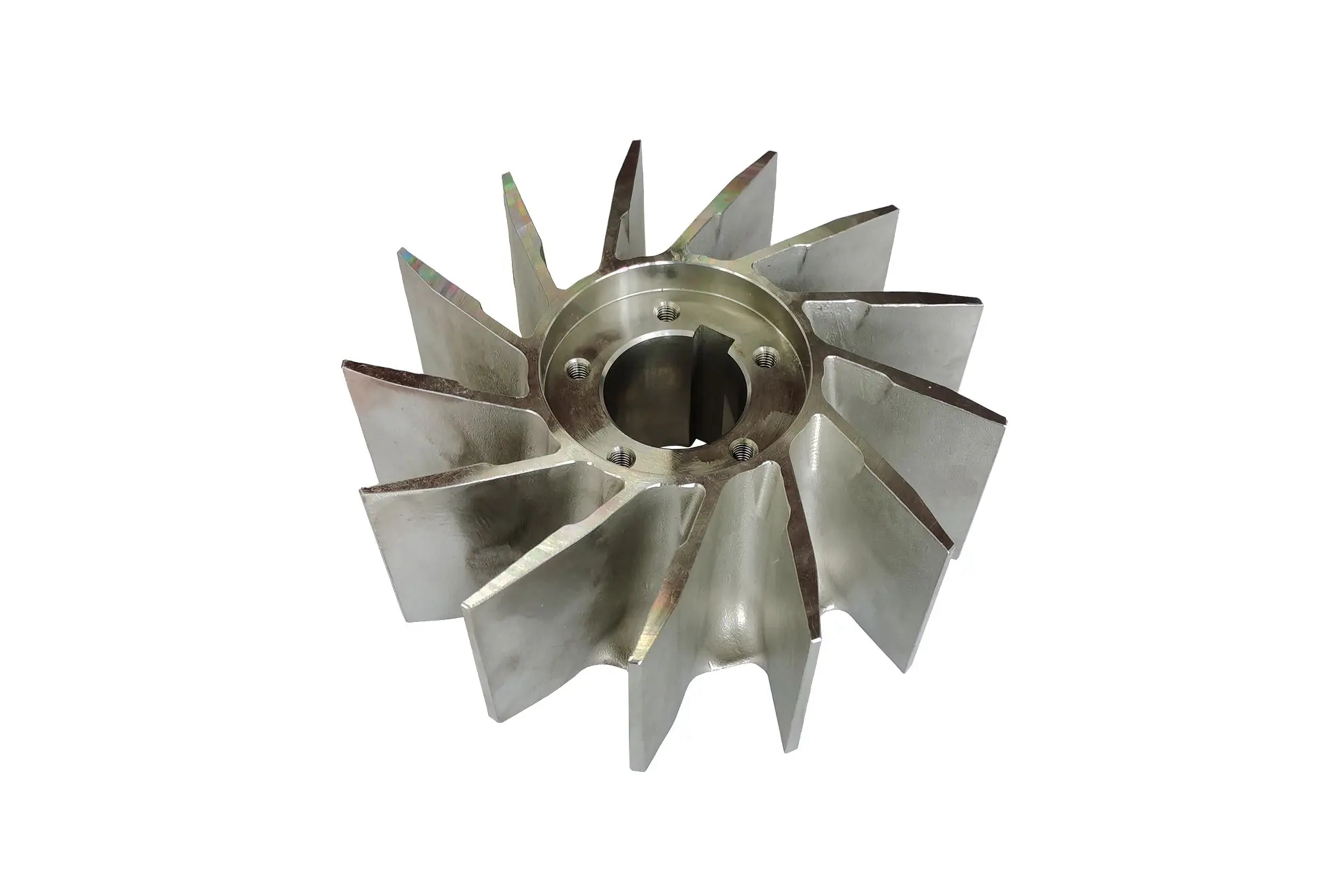

Nimonic 86 Precision Casting Heat Resistant Valve Components Fabricator
Introduction
Nimonic 86 is a high-strength nickel-chromium-cobalt superalloy designed for outstanding heat resistance, oxidation stability, and fatigue strength at temperatures exceeding 1000°C. As a specialized precision casting fabricator, we manufacture Nimonic 86 components for high-temperature valve systems with ±0.05 mm dimensional accuracy and <1% porosity, ensuring long-term reliability in thermally aggressive industrial environments.
Our castings are ideal for valves used in power generation, chemical processing, and aerospace, where thermal stress, creep, and oxidation resistance are critical.
Core Technology: Precision Casting of Nimonic 86
We apply advanced vacuum investment casting to manufacture complex Nimonic 86 valve components. Ceramic shell molds (8–10 layers) are built around precision wax patterns and vacuum poured at ~1390°C. Mold preheating at 1050°C and solidification rates of 40–90°C/min ensure refined equiaxed grains (0.5–2 mm), dimensional tolerance within ±0.05 mm, and internal porosity <1%.
Material Characteristics of Nimonic 86 Alloy
Nimonic 86 is engineered for superior oxidation and thermal fatigue resistance under high stress at extreme temperatures. Ideal for exhaust valves, hot gas seals, and pressure-retaining hardware. Key properties include:
Property | Value |
|---|---|
Melting Range | 1320–1380°C |
Density | 8.2 g/cm³ |
Tensile Strength (at 950°C) | ≥850 MPa |
Yield Strength (at 950°C) | ≥650 MPa |
Elongation | ≥18% |
Creep Rupture Strength (1000h @ 950°C) | ≥180 MPa |
Oxidation Resistance | Excellent above 1000°C |
These characteristics enable Nimonic 86 valves to perform reliably under severe temperature and flow conditions.
Case Study: Nimonic 86 Valve Casting Project
Project Background
A thermal energy plant operator required heat-resistant exhaust valve bodies and seats for supercritical steam conditions (~1000°C). Our foundry delivered Nimonic 86 precision-cast components that met EN 10213 and ASME B16.34 specifications, with verified grain refinement and oxidation-resistant performance under continuous cyclic operation.
Typical Heat-Resistant Valve Applications
Turbine Control Valves: High-stress components exposed to hot steam and combustion gases; Nimonic 86 resists creep and oxidation fatigue over prolonged service intervals.
Exhaust Valves in Aero-Derivative Engines: Castings maintain sealing integrity and high strength at exhaust temperatures up to 1050°C.
Chemical Process Control Valves: Designed for corrosive and high-thermal industrial flows involving superheated acids and oxidizers.
Shutoff Valves for Industrial Furnaces: Nimonic 86 cast bodies provide mechanical reliability where other alloys deform due to prolonged red-hot conditions.
These applications demand excellent hot hardness, dimensional stability, and oxidation resistance under continuous cycling.
Valve Component Manufacturing Solutions
Casting Process Wax patterns are assembled and invested into ceramic shells, then vacuum cast at ~1390°C. Controlled solidification ensures even carbide and γ' distribution to resist hot cracking and creep deformation.
Post-processing Hot Isostatic Pressing (HIP) at 1180°C and 100 MPa is used to eliminate internal voids. Final machining ensures precise sealing face geometry and bolt patterns for ANSI flanges or API mounting.
Surface Treatment Oxidation-resistant coatings, such as aluminide or diffusion-chromized layers, may be applied for service above 1000°C. Surface polishing is performed on valve seats to reduce flow turbulence and wear.
Testing and Inspection Components undergo X-ray inspection, CMM dimensional scanning, and tensile testing at elevated temperature. Metallographic microscopy ensures proper phase dispersion and carbide control.
Core Manufacturing Challenges for Nimonic 86 Valve Components
Casting thin-wall and complex valve bodies without shrinkage or distortion.
Maintaining oxidation resistance after 10,000+ hours at 1000°C.
Controlling microstructure and heat-treatment to prevent embrittlement and creep under pressure.
Results and Verification
Dimensional tolerance of ±0.05 mm validated by 3D CMM scanning.
Internal porosity <1%, confirmed via radiographic and HIP evaluation.
Mechanical performance ≥850 MPa tensile strength at 950°C.
Surface oxidation layer depth <10 µm after 1000-hour test at 1050°C.
FAQs
What makes Nimonic 86 ideal for casting high-temperature valve components?
What precision levels can be achieved in casting valve seats and housings?
How do you verify oxidation and creep resistance in finished components?
Can Nimonic 86 valve parts be customized for chemical and power plant systems?
What standards and inspection protocols are used for valve component delivery?
