Advantages of SLA for High-Precision Plastic Prototypes
Stereolithography (SLA) has become one of the most widely used 3D printing technologies, particularly for producing high-precision plastic prototypes. The need for accurate and reliable prototypes in aerospace, automotive, medical, and consumer products has driven the widespread adoption of SLA. The technology offers several advantages, including exceptional detail resolution, smooth surface finishes, and the ability to work with various materials. This blog delves into the benefits of SLA for high-precision plastic prototyping, exploring its manufacturing process, suitable printing materials, post-processing techniques, testing procedures, and critical industries and applications.
Manufacturing Process of SLA for High-Precision Prototypes
SLA uses a UV laser to cure and solidify layers of liquid resin, building the prototype layer by layer in a precise and controlled manner. The process begins with creating a 3D model using computer-aided design (CAD) software. The model is then sliced into thin layers, typically 25-100 microns, and transferred to the SLA printer.
The printer uses a focused UV laser to cure each resin layer, solidifying the material only where the laser is directed. The layer is built on a movable platform that descends incrementally after each layer is completed. This process allows for wonderful details, with SLA capable of producing features as small as 50 microns. Unlike other 3D printing methods, such as Fused Deposition Modeling (FDM) or Selective Laser Sintering (SLS), limited by nozzle diameter or powder fusion processes, SLA's laser-based approach provides greater detail and surface smoothness.
SLA’s ability to create highly intricate geometries with tight tolerances is a significant advantage. The technology is ideal for prototyping small, complex features that would be difficult or impossible to create with traditional manufacturing methods. This makes SLA especially popular in industries requiring high accuracy, such as aerospace and medical device manufacturing.
Suitable Printing Materials for SLA
SLA 3D printing is compatible with various materials, each tailored to meet specific performance requirements. These materials, often called resins, come in various formulations to achieve different mechanical, thermal, and aesthetic properties. Here are some of the most commonly used SLA materials for high-precision plastic prototypes:
Standard Resins
These versatile, general-purpose resins are available in various colors, including clear, black, and white. Standard resins are typically used for visual prototypes where detail and surface finish are the primary concerns. They offer high precision and smoothness, making them suitable for applications requiring fine details and a high-quality appearance.
Durable Resins
These resins mimic the mechanical properties of ABS plastic, offering increased toughness, flexibility, and impact resistance. They are often used for functional prototypes that simulate end-use parts' performance. Durable resins can withstand moderate mechanical stresses and are ideal for testing the physical characteristics of a design before full-scale production.
Castable Resins
These resins are formulated for investment casting applications. Castable SLA resins allow the production of highly detailed, burn-out-friendly parts that can be used for lost-wax casting processes. This is ideal for creating metal prototypes for industries like aerospace and jewelry.
High-Temperature Resins
These resins are designed to withstand elevated temperatures, making them suitable for prototyping parts exposed to heat. High-temperature SLA resins are commonly used for automotive, aerospace, and industrial applications where thermal resistance is crucial.
Biocompatible Resins
These materials meet the biocompatibility standards for medical and dental applications. They are used to create anatomical models, surgical guides, and custom implants. The ability to produce biocompatible parts using SLA technology is a significant advancement in the medical field, allowing for better pre-surgical planning and custom solutions.
Selecting the right resin for SLA printing depends on the specific requirements of the prototype, including its mechanical properties, surface finish, and intended application. The variety of materials available for SLA enables manufacturers to tailor the performance of their prototypes and test parts under conditions that closely resemble real-world applications.
Post-Processing of SLA Parts
While SLA parts offer excellent surface finishes directly out of the printer, post-processing is often necessary to ensure that the prototypes meet final specifications for function, appearance, and durability. Post-processing involves several key steps that refine the printed parts, remove unwanted materials, and enhance the mechanical properties of the finished prototypes.
Support Removal

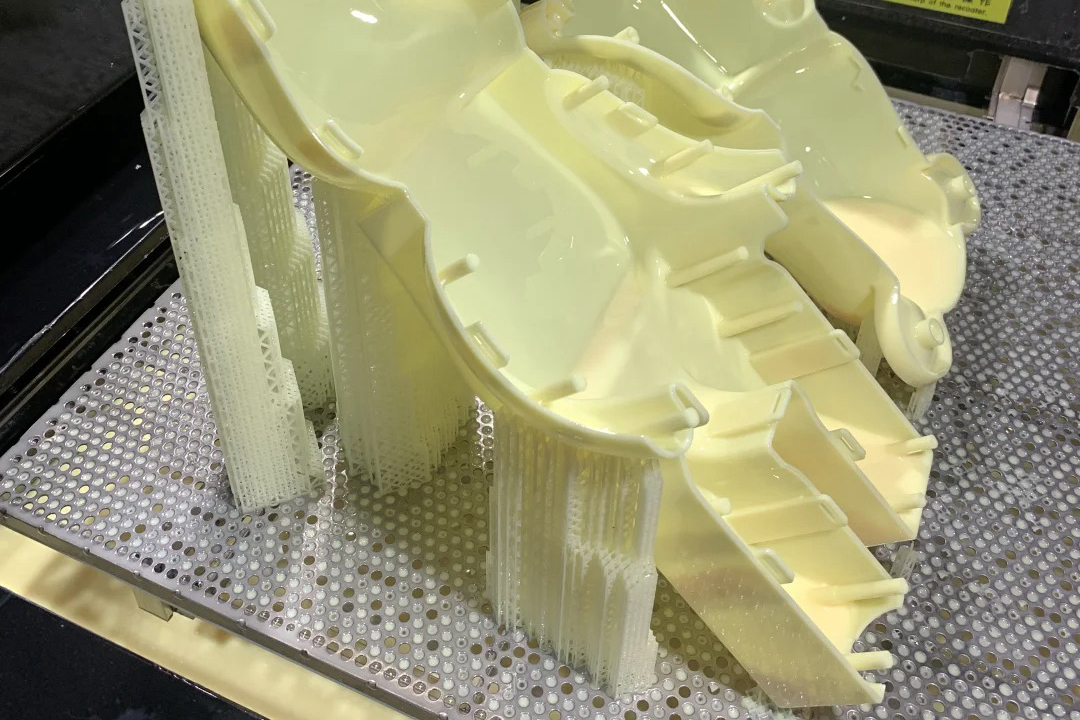

Since SLA parts are built layer by layer, support structures are often required to stabilize overhanging or intricate features. These supports are printed alongside the part and must be removed manually after the print is complete. Support removal can sometimes be done using automated systems or tools that carefully detach the support material without damaging the printed part. Support removal is a critical step to ensure the part’s accuracy.
Cleaning
After support removal, the parts are usually cleaned in a solution of isopropyl alcohol (IPA) to remove any uncured resin. This step ensures that the part has a clean surface and that no excess resin remains that could affect the part’s appearance or performance. Ultrasonic cleaning can also be used for parts with intricate geometries or delicate details, helping to achieve a cleaner surface before further post-processing.
Curing
Post-curing is a critical step in SLA manufacturing. After cleaning, the parts are exposed to additional UV light to fully harden the resin, ensuring the material reaches its optimal strength and durability. The process can be done in a dedicated curing station or UV oven. This step is crucial for high-performance resins that require maximum material strength. Heat treatment or curing techniques enhance the material properties for better functional performance.
Surface Smoothing and Polishing
Additional surface finishing techniques may improve the parts' appearance and functional performance. Sanding and polishing are commonly used to smooth the surface and remove visible layer lines. Polishing, in particular, is essential for visual prototypes, as it enhances the clarity and gloss of the part. Surface finishing techniques ensure the part’s surface is smooth and well-refined.
Coating and Painting
Depending on the application, SLA parts may also undergo coating or painting to enhance their surface properties or to add color. This is particularly important for cosmetic prototypes or products needing a high-quality look. Coatings like protective or aesthetic layers can improve both appearance and durability.
Testing and Quality Assurance for SLA Parts
Testing is crucial in ensuring that SLA prototypes meet the required standards for accuracy, mechanical performance, and aesthetic qualities. Several methods are used to assess the quality of SLA parts, including dimensional accuracy checks, mechanical testing, and surface finish inspection.
Dimensional Accuracy and Tolerance Testing
One of the key advantages of SLA is its ability to produce parts with high dimensional accuracy. Tolerance testing uses measuring tools such as calipers, micrometers, and coordinate measuring machines (CMM) to ensure that the part dimensions meet the required specifications. Coordinate Measuring Machine (CMM) Checking ensures precise dimensional accuracy, essential for prototypes that need to fit into complex assemblies.
Mechanical Testing
Mechanical testing, such as tensile, flexural, and impact, is conducted to evaluate the printed part's strength, flexibility, and durability. These tests help determine whether the prototype will perform as expected under real-world conditions. Understanding the mechanical properties is critical for assessing part reliability for functional prototypes. Tensile testing is a key technique to assess the material's performance under stress.
Surface Finish Inspection
The smoothness and quality of the surface finish are essential in determining the final appearance of the part. Surface roughness is often measured using profilometers or 3D scanning technology to ensure the part meets the required visual and tactile standards. 3D scanning provides precise data to ensure the surface finish matches the design specifications.
Environmental Testing
SLA prototypes can undergo various environmental tests, such as exposure to UV light, high temperatures, and chemicals, to evaluate the material's performance under specific conditions. For example, high-temperature resins may be tested for their ability to maintain mechanical properties at elevated temperatures. Simultaneous thermal analysis (STA) can be applied to evaluate material behavior under thermal stress.
Industries and Applications for SLA High-Precision Plastic Prototypes
SLA (Stereolithography) technology is widely used across multiple industries, particularly in applications that require high precision and fine details. Here are some of the industries and applications that benefit from SLA for high-precision plastic prototypes:
Aerospace
In the aerospace industry, SLA produces lightweight, highly detailed parts for testing and prototyping. Components such as brackets, housings, and engine components can be rapidly prototyped using SLA, enabling engineers to test fit and function before manufacturing the final product. Aerospace and aviation industries extensively use SLA to produce high-precision parts for aircraft components and jet engine prototypes.
Automotive
SLA is frequently used in the automotive industry to prototype custom parts and components. From functional parts like brackets to aesthetic elements like dashboards, SLA offers a fast and cost-effective way to evaluate designs and ensure their functionality before full-scale production. The automotive industry relies on SLA to quickly validate designs, helping reduce time-to-market for new vehicle models.
Medical
In the medical field, SLA produces custom anatomical models, surgical guides, and medical device prototypes. The high level of precision and the ability to use biocompatible resins makes SLA a valuable tool for medical device manufacturers and healthcare professionals. Medical companies utilize SLA to create accurate, patient-specific models for surgical planning and medical device testing.
Consumer Electronics
SLA is commonly employed in the consumer electronics industry to prototype enclosures, internal components, and product designs rapidly. It allows designers to quickly test and refine product concepts before investing in expensive tooling and molds. Electronics companies use SLA to create functional prototypes for enclosures, circuit boards, and other components, improving product design and development cycles.
Industrial and Manufacturing
SLA is used to create prototypes for industrial parts such as pumps, valves, and other functional components. It allows manufacturers to evaluate the performance of parts under real-world conditions before committing to full-scale production. The industrial manufacturing sector benefits from SLA by producing high-precision prototypes for machinery and equipment, ensuring design validation and functionality before large-scale production.
Jewelry and Fashion
The fine details achievable with SLA make it famous for prototyping designs in the jewelry and fashion industries, including intricate and customized pieces. The consumer goods and jewelry industries benefit from SLA’s ability to produce highly detailed and customized prototypes, allowing designers to evaluate and refine designs before mass production.
